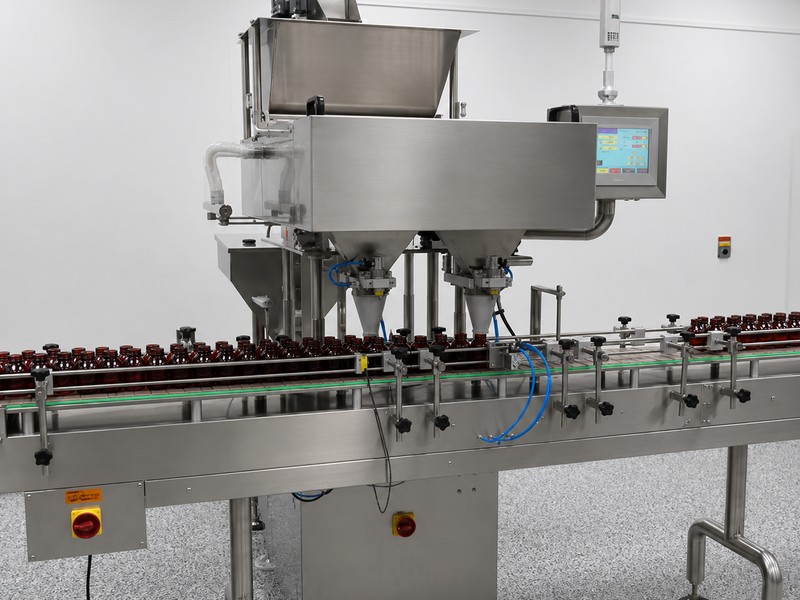

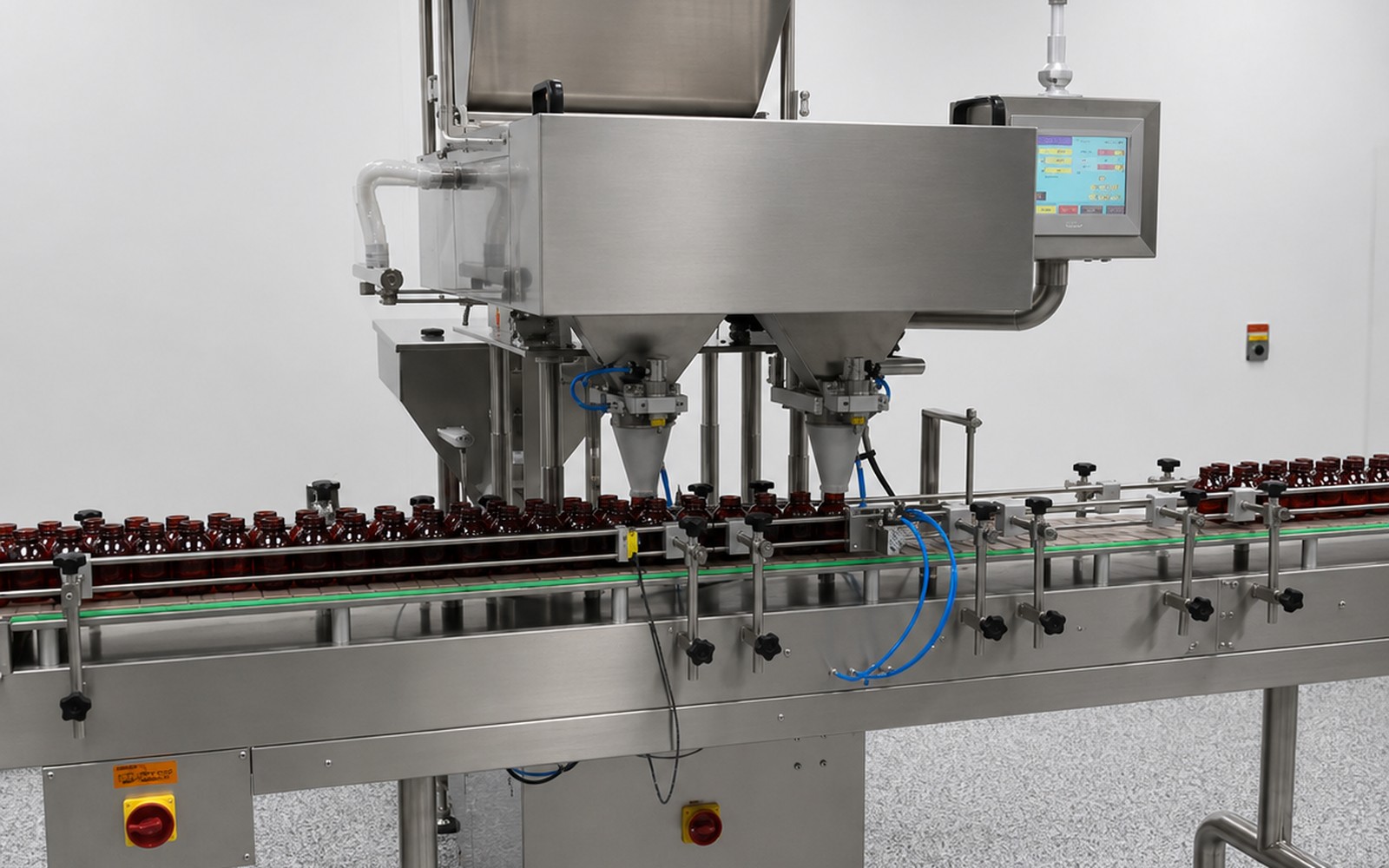

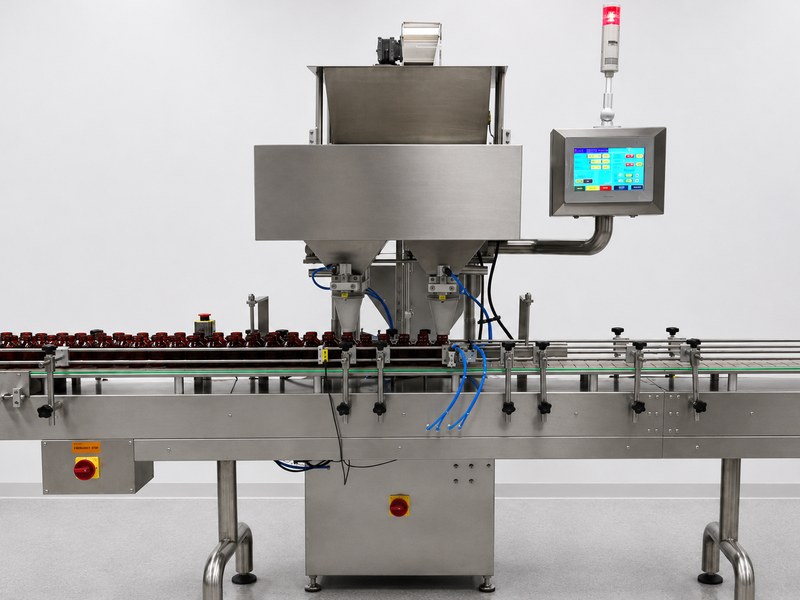

The UAC-16E is a 16-channel automatic tablet and capsule counter built around a streamlined component specification, offering 16-channel counting and filling at a lower price point than our standard UAC-16. It runs two counting/filling heads off a sensor-controlled double-rail conveyor, with PLC control and a color touch screen for operation and fault monitoring. An integrated dual-lane conveyor ships with the machine, so it's ready to connect directly into your line.

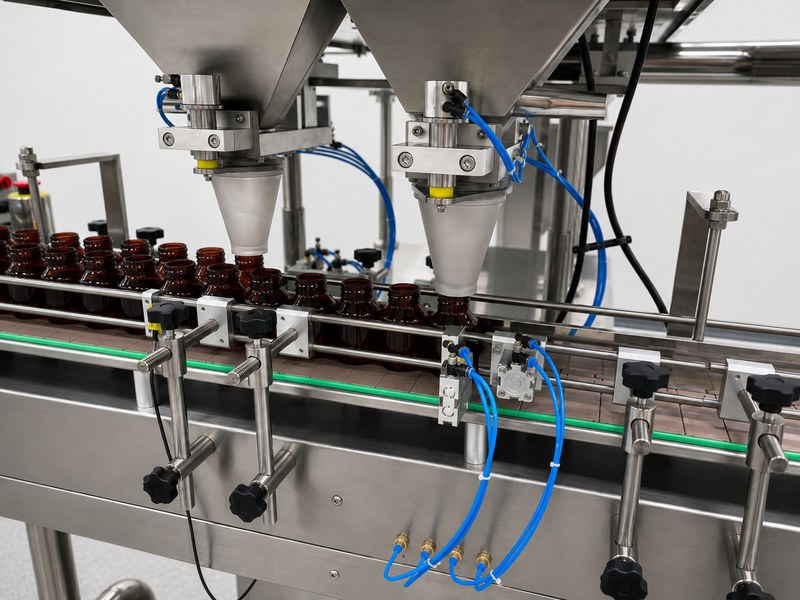

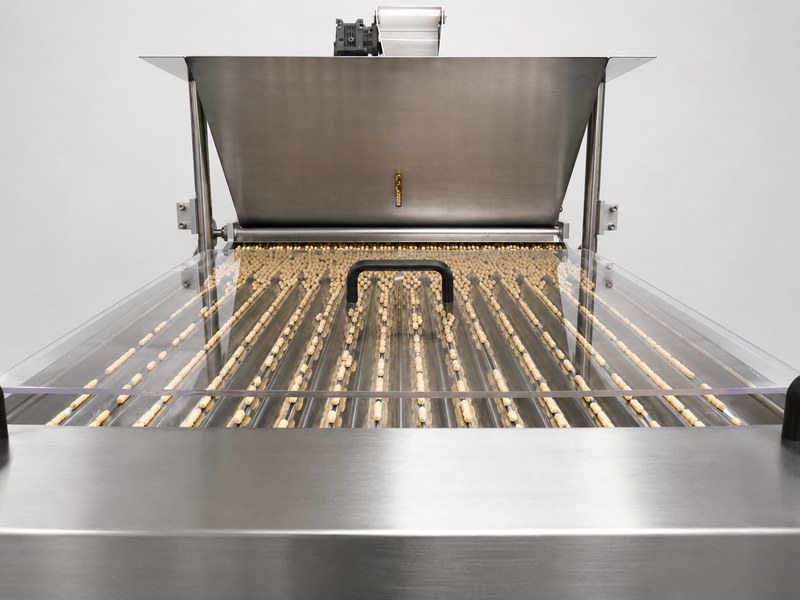

The UAC-16E pairs 16 vibrating counting channels (with two-level vibration adjustment) with two counting/filling heads running off a sensor-controlled double-rail conveyor, so two bottles are counted and filled at once. Product sensors handle precision counting, with a pre-count feature built in and a "no bottle, no fill" safeguard against wasted product.

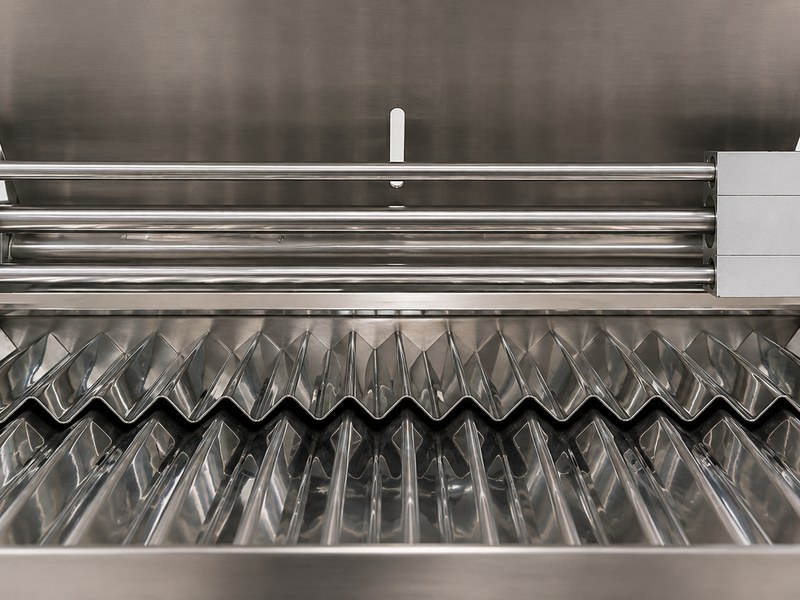

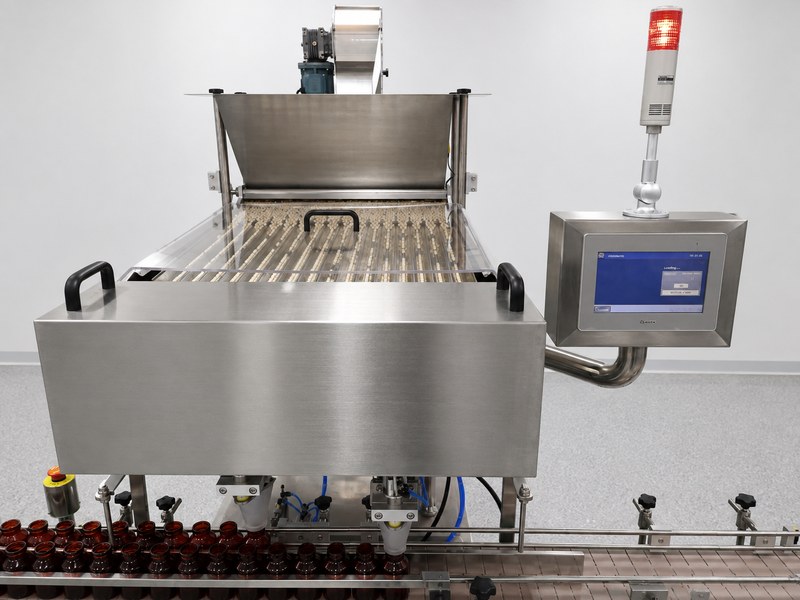

Two separate vibratory zones — each with its own hopper — feed product across a three-step vibrating tray system, and an automatic height-adjustment lifting system accommodates different bottle heights without manual retooling. All product-contact parts disassemble without tools for cleaning and changeover, and the frame is stainless steel construction built to meet cGMP standards.
Two heads run off a sensor-controlled double-rail conveyor.
Built-in pre-count supports faster batch changeover.
Bottle-presence sensing stops discharge without a bottle in position.
On-screen fault analysis for blocked sensing head, batch complete, and container jam.
Disassemble for cleaning and changeover without tools.
Lifting system adjusts to different bottle heights.
Approx. 13 ft (4m) sanitary stainless conveyor with adjustable speed.
Sensor-eye dust monitoring helps maintain counting accuracy.
✓ Interchangeable funnels for different bottle opening sizes
✓ Powder cleaning vacuum system ready
✓ Sliding block accessory for counting gummies
✓ Automatic capsule/tablet loading system — auto-feeds the hopper at floor level (floor hopper approx. 35" × 16" × 14" / 900 × 400 × 360mm)
| Model | UAC-16E |
| Channels | 16 (2-level vibrating adjustment) |
| Counting Heads | 2-head counter & filler |
| Counting Range | 20–9,999 pcs |
| Tablet Diameter Range | 5mm – 25mm |
| Capsule Size Range | #00 – #5 |
| Bottle Diameter | 20mm – 100mm (0.8" – 3.9") |
| Bottle Height | 40mm – 240mm (1.6" – 9.4") |
| Single-Head Capacity | 1 – 1,000 pcs/min |
| Listed Max Speed | Up to 15,000 pcs/min (approx. 60–65 bottles/min at 60-count) |
| Integrated Conveyor | Dual-lane, 6" wide, approx. 13 ft (4m), adjustable speed |
| Product Contact Parts | Stainless steel 304 |
| Non-Contact Parts | Stainless steel 304 & food-grade plastic |
| Power Supply | 220V, 60Hz, 3-phase, 4-wire, CE compliant |
| Air Consumption | 260 L/min |
| Air Pressure | 0.5 – 0.7 MPa |
| Dimensions (L × W × H) | Approx. 78" × 74" × 68.5" (1980 × 1870 × 1740mm) |
| Weight | Approx. 1,764 lb (800 kg) |
