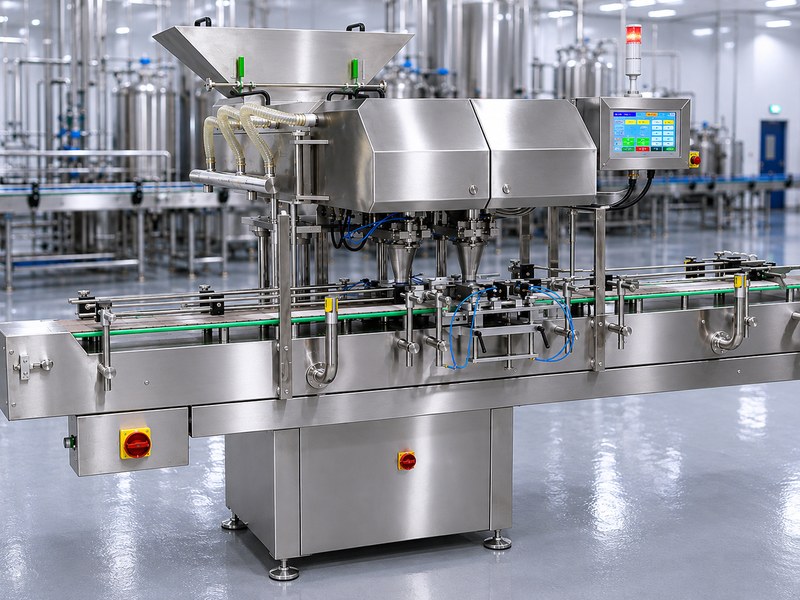

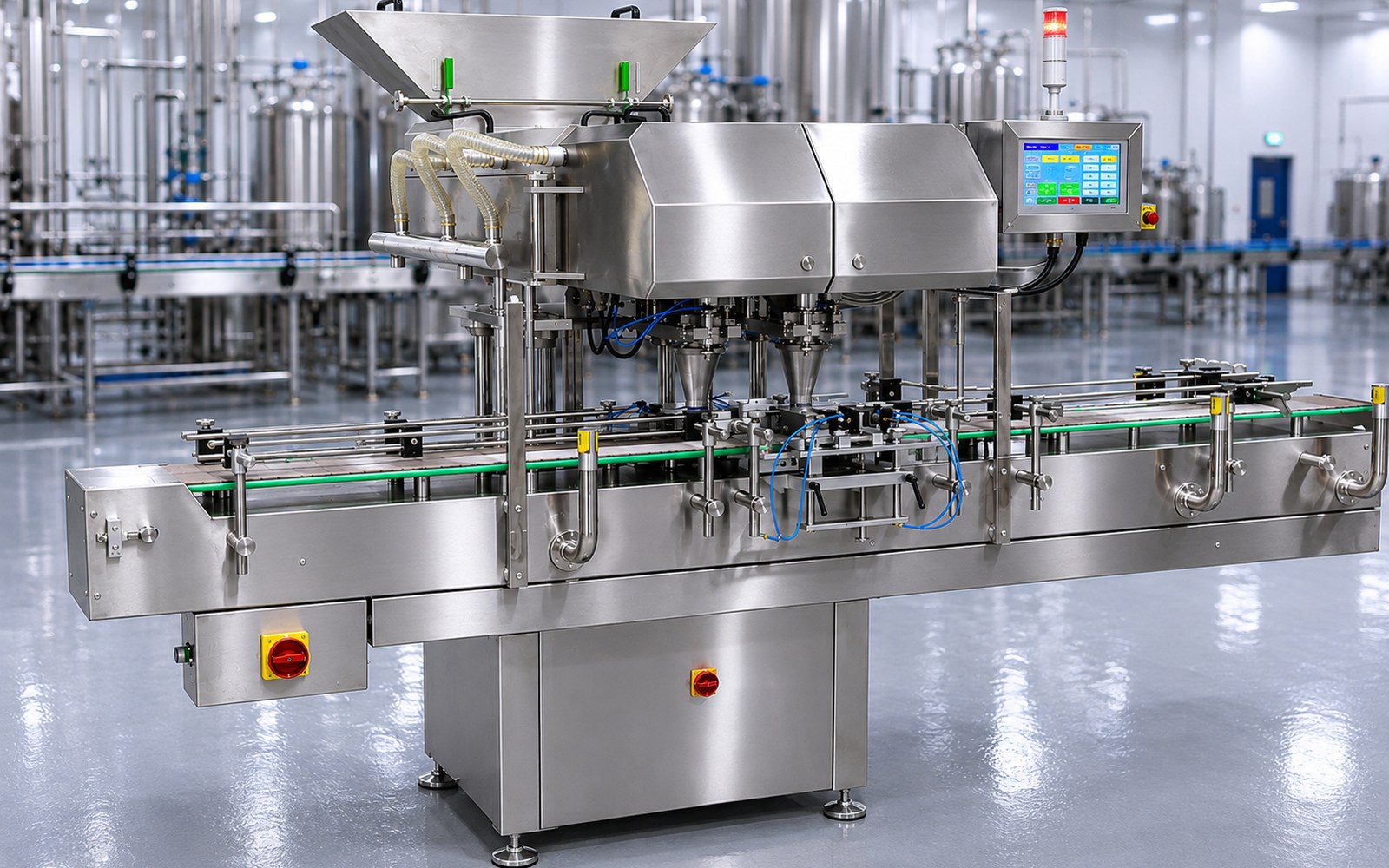

The UAC-16 automatically counts and fills hard gelatin capsules, softgels, tablets, and round pills. This 16-channel single-unit counter runs dual nozzles with 176 total sensor eyes (11 per channel) for 100% counting accuracy. Three-stage vibration trays feed product with adjustable frequency per tray for quick, stable feeding, and dual diving nozzles lock each bottle in place before filling to prevent spillage.

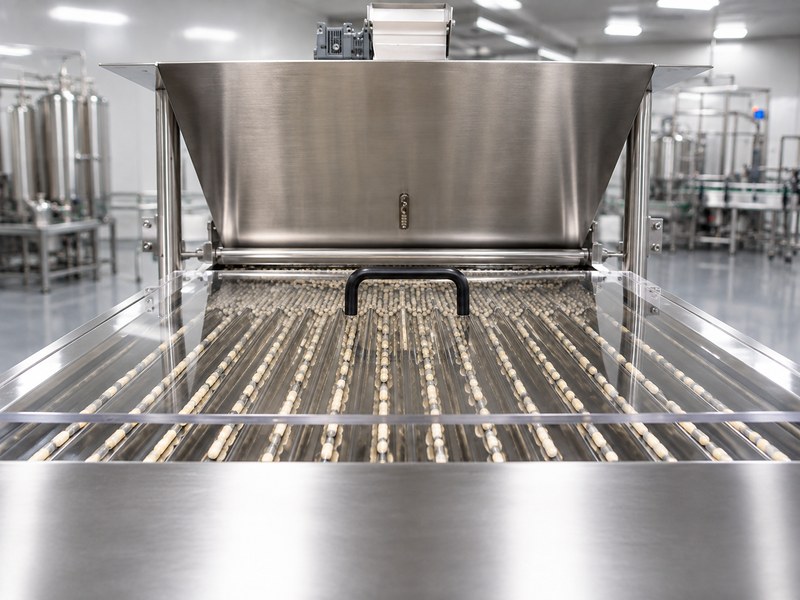

This 16-channel single-unit counter runs dual nozzles with 176 total sensor eyes (11 per channel) for 100% counting accuracy. Each of the 16 counting channels is equipped with its own product sensor, and the vibratory channel trays are physically separated from the vibratory drive system — protecting the trays, extending machine life, and holding counting accuracy at 100%.
Bottles are positioned and indexed by air cylinders for accurate placement before filling, and the machine handles any size or shape of tablet or capsule without changing parts. An advanced detecting system includes a dust compensator and built-in spike controller, so sensor sensitivity automatically self-adjusts to offset dust accumulation on the sensor window over time.
Nozzles dive into bottles and hold them in place during fill.
Reliable, intuitive operation from the control panel.
Counts any tablet or capsule size/shape as-is.
Adjustable frequency per tray for stable feeding.
Dust compensator and spike controller maintain accuracy.
Gentle product drop, cGMP-compliant handling.
Tool-less breakdown for fast cleaning and changeover.
Accurate bottle positioning prevents spillage.
Cleaner machine layout, easier day-to-day cleanup.
| Model | UAC-16 |
| Channels | 16 |
| Production Output | Up to 80 bottles/min (rated on #0 capsule, 60 count) |
| Tablet Diameter Range | 5mm – 22mm |
| Capsule Size Range | #00 – #5 |
| Single Bottle Count Range | 15 – 10,000 pcs/min |
| Max Speed | 16,000 pcs/min |
| Power Supply | 220V, 60Hz, 3-phase |
| Weight | Approx. 1,000 kg |
