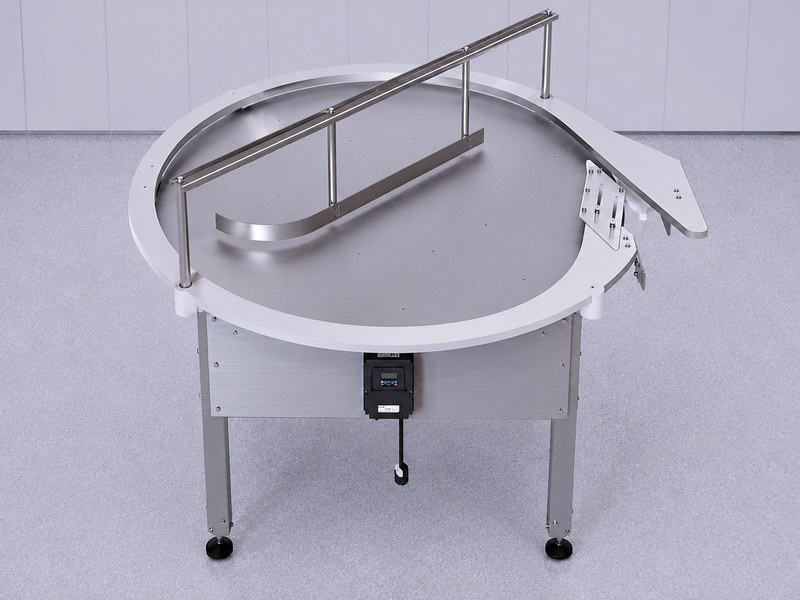

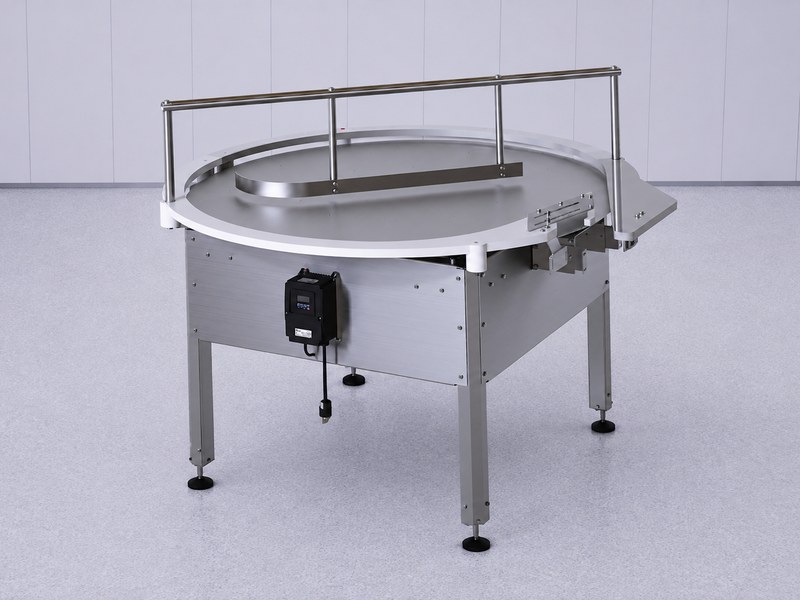

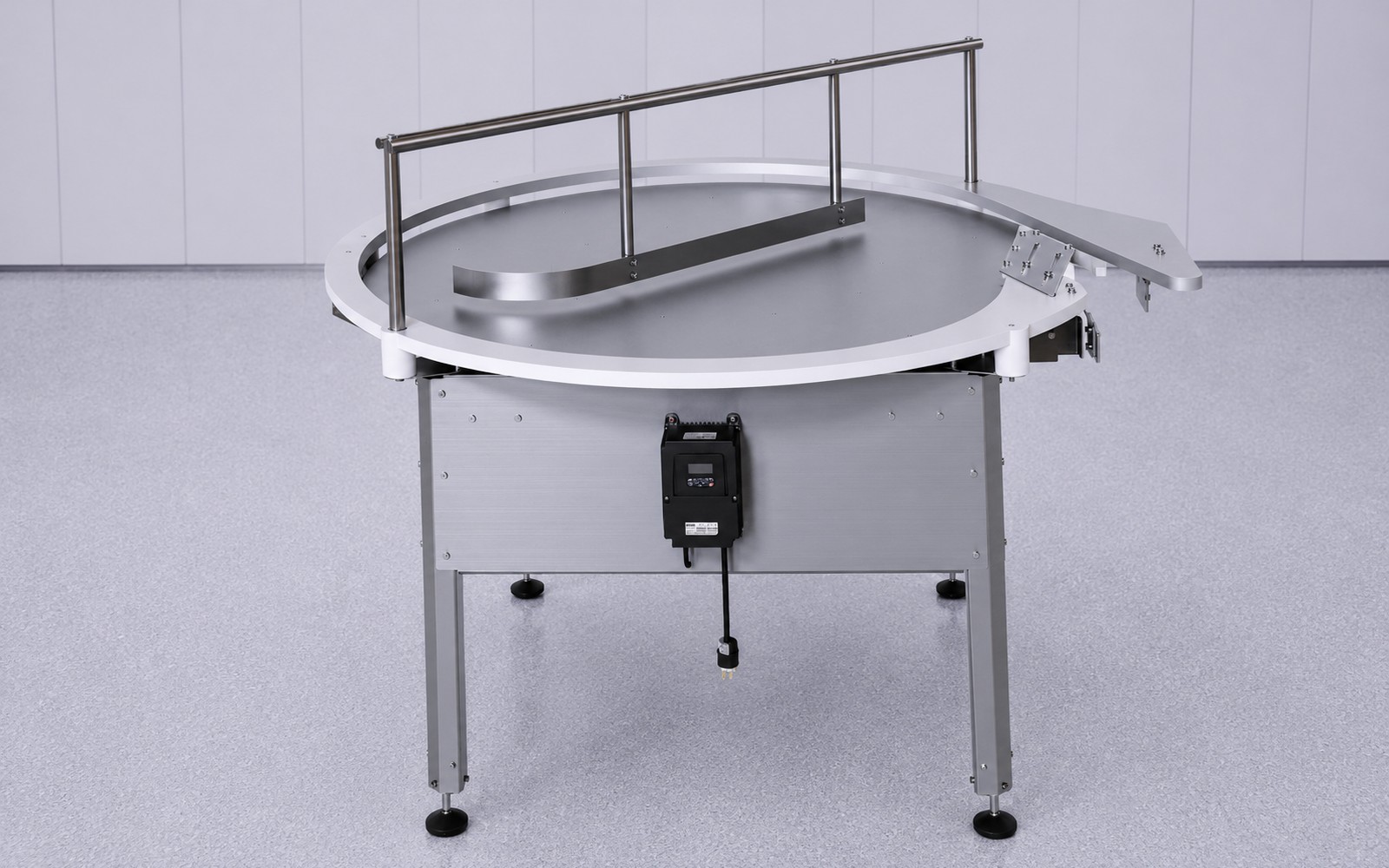

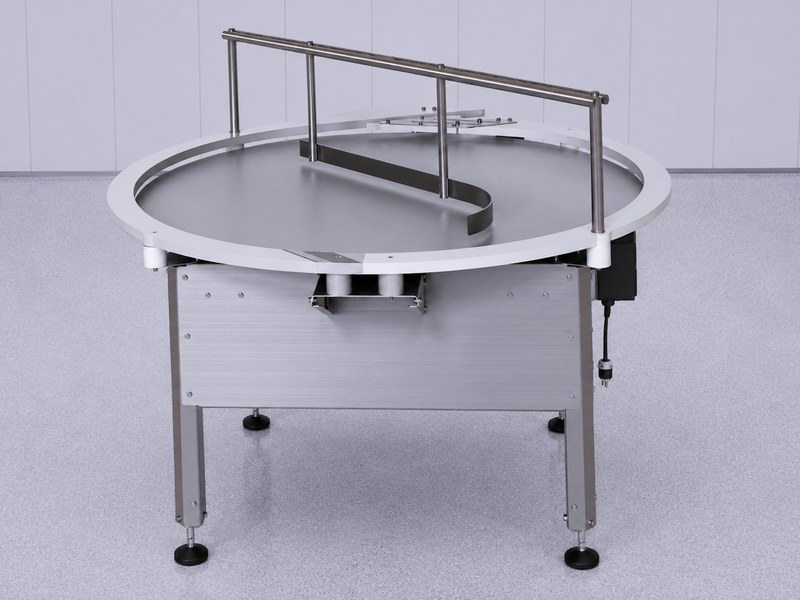

The RU-59 is our large-format rotary table, built around a 60" diameter disc in 1/8" 304 stainless steel, supported by a 2" stainless steel square tube main structure with stainless steel covers on all 4 sides. A 1/2 Hp DC gear motor with potentiometer speed control drives the table up to 150 containers per minute, giving larger or higher-volume containers more surface area to orient and accumulate before moving down the line.
The RU-59 runs a 60" diameter stainless steel disc, supported by a 1/2" aluminum plate, on a 2" stainless steel square tube frame with covers on all four sides. Variable speed control runs up to 150 containers per minute, driven by a 1/2 Hp DC gear motor.
The larger 60" diameter gives more surface area for orienting and accumulating containers than our standard 42" table — a good fit for bigger bottles or higher-volume lines that need extra buffer capacity.
1/8" 304 stainless steel disc, 1/2" aluminum plate support.
Variable speed to match line throughput.
Full stainless steel enclosure standard.
More power to handle larger, heavier containers.
60" surface gives extra buffer for higher-volume lines.
Heavy-duty main structure throughout.
Fits into new or existing conveyor layouts.
| Model | RU-59 |
| Table Diameter | 60" |
| Table Material | 1/8" 304 stainless steel |
| Disc Support | 1/2" aluminum plate |
| Main Structure | 2" stainless steel square tube |
| Covers | Stainless steel, all 4 sides |
| Motor | 1/2 Hp DC gear motor |
| Speed Control | Potentiometer |
| Max Speed | Up to 150 containers/minute |
