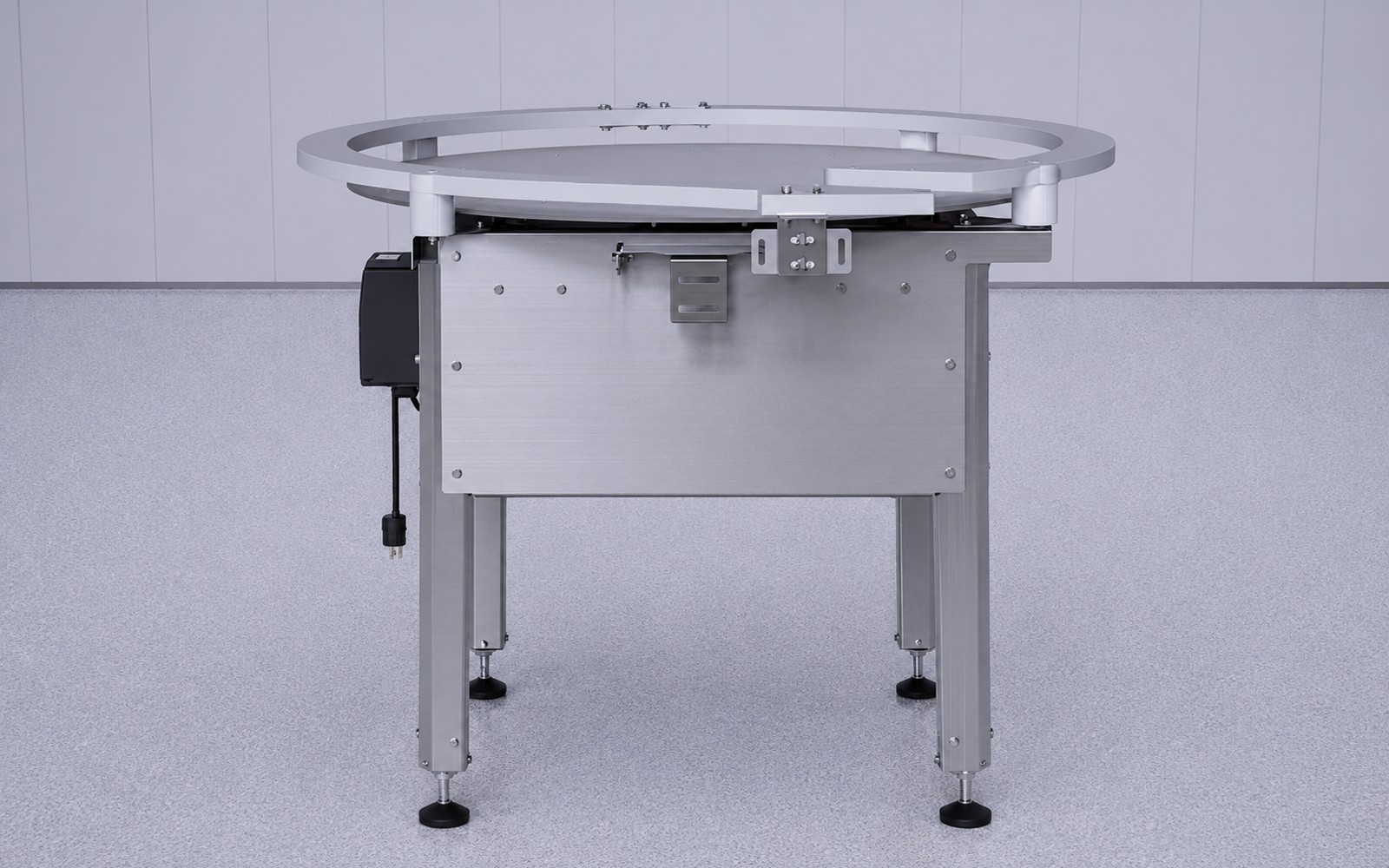

The RA 3200 is a 42" diameter rotary table built in 1/8" 304 stainless steel, supported by a 2" stainless steel square tube main structure with stainless steel covers on all 4 sides. It's built for the end of the production line, accumulating finished product ahead of packaging or boxing. Also available in 48" and 60" diameters for higher-volume accumulation needs.
The RA 3200 runs a 42" diameter stainless steel disc, supported by a 1/2" aluminum plate, on a 2" stainless steel square tube frame with covers on all four sides. Variable speed control runs up to 150 containers per minute, driven by a 1/2 hp dc gear motor.
It's built for the end of the production line, accumulating finished product ahead of packaging or boxing. Also available in 48" and 60" diameters for higher-volume accumulation needs.
1/8" 304 stainless steel disc, 1/2" aluminum plate support.
Variable speed to match line throughput.
Full stainless steel enclosure standard.
Accumulates product ahead of packaging or boxing.
Larger diameters available for higher volumes.
Heavy-duty main structure throughout.
Fits into new or existing conveyor layouts.
| Model | RA 3200 |
| Table Diameter | 42" (48" and 60" also available) |
| Table Material | 1/8" 304 stainless steel |
| Disc Support | 1/2" aluminum plate |
| Main Structure | 2" stainless steel square tube |
| Covers | Stainless steel, all 4 sides |
| Motor | 1/2 Hp DC gear motor |
| Speed Control | Potentiometer |
| Max Speed | Up to 150 containers/minute |

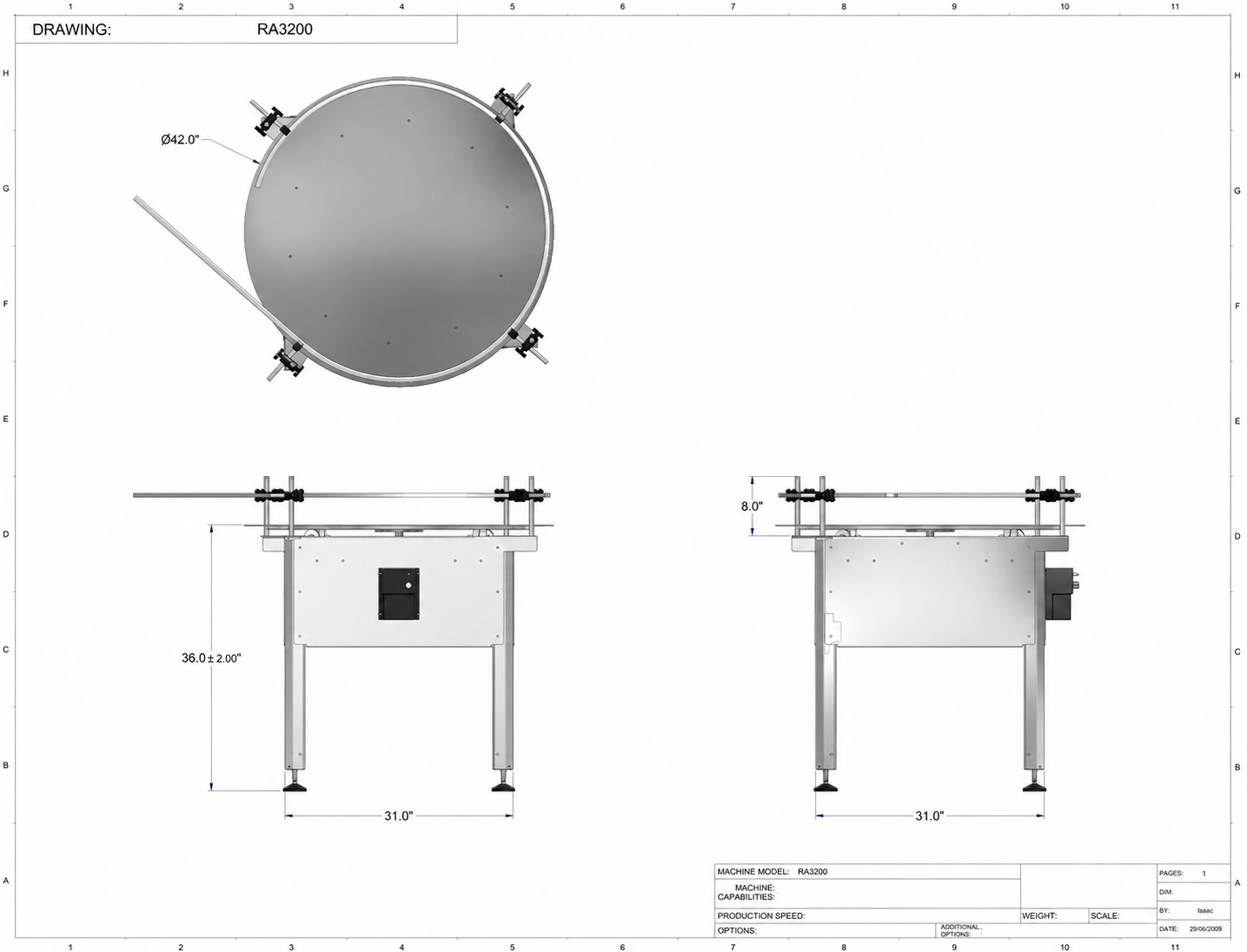

| Overall Height | 36.0" ± 2.00" |
| Table Height | 8.0" |
| Base Footprint | 31.0" |
