Gummies have long been difficult to count into bottles — their sticky nature means they don't feed well through standard counting equipment, which has forced many manufacturers to weigh gummies into containers instead of counting them. The RC60.12.2G solves that with a special feeding system built specifically for gummies, counting up to 6,000 gummies per minute. As a bonus, it also counts traditional dosage forms like softgels, capsules, tablets, and candies.
Gummies are notoriously hard to count into bottles. Because of their sticky, irregular nature, they don't feed reliably through standard counting equipment — which is why many manufacturers have resorted to weighing gummies into containers instead, even though counting gives better dose accuracy. The RC60.12.2G was purpose-built to solve that feeding problem with a 12-channel counting system and a special feeding path designed around how gummies actually behave.

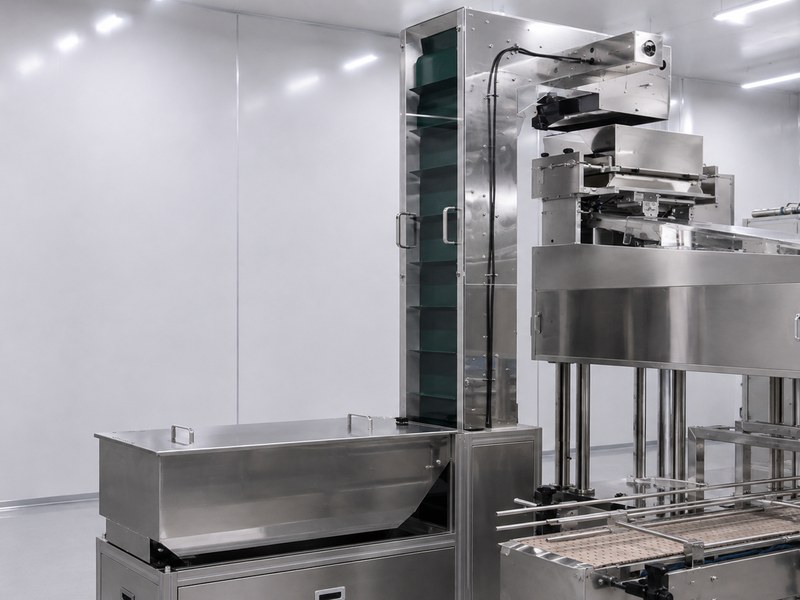

Product starts at a floor-level bulk feed hopper and rides a cleated elevator up to the counting deck. A gear-driven rotating double finger bar — easily removable for cleaning — separates and advances product into the 12 channels. An adjustable variable-speed diverter bar sweeps left and right above the product channels to eliminate "twinning" (two pieces counted as one), and two flexible silicone funnels finish the process, reducing the incidence of gummies clogging the funnels on the way into the bottle. As a bonus, the same system counts traditional dosage forms — softgels, capsules, tablets, and candies — at up to 7,000 pieces per minute.
With cleated elevator, starts the process.
Easily removable for cleaning.

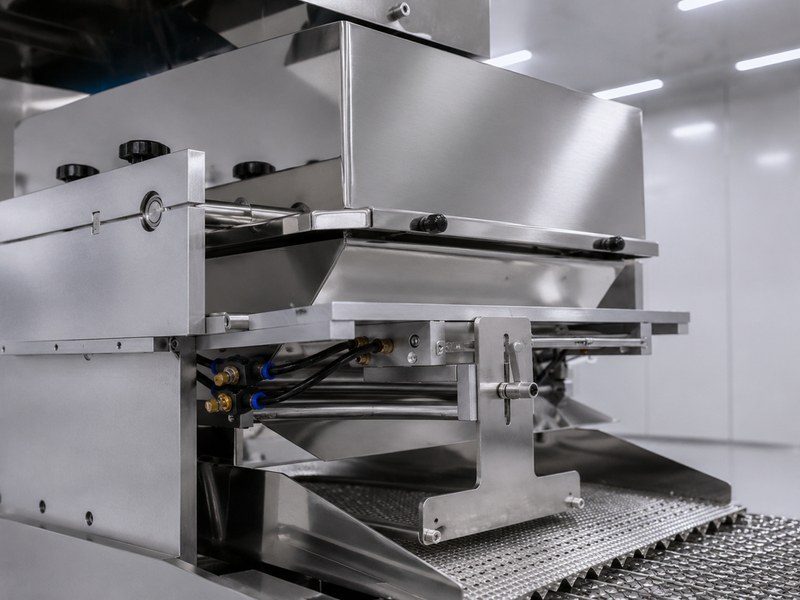

Sweeps left and right above the product channels to eliminate "twinning."
Finish the process by reducing the incidence of gummies clogging the funnels.
Dedicated track per lane for consistent, accurate counts.
2.5m two-lane conveyor for container handling.
Also producing CBD or cannabinoid products? See our full CBD & Cannabinoid Manufacturing Equipment lineup.
Looking to configure a full production line? See our Gummy Bottling Lines guide.
| Number of Tracks | 12 |
| Number of Feeding Trays | 3 |
| Number of Funnels | 2 (silicone) |
| Output (Gummies/Min) | Maximum 6,000 (2.5g) |
| Output (Standard Product/Min) | Maximum 7,000 |
| Product Size Range | 2 – 29mm |
| Container Height Range | 45 – 200mm |
| Container Diameter Range | 25 – 100mm |
| Conveyor Length | 2.5m, two lane |
| Machine Weight | 950 kg |
| Estimated Crated Weight | 850 kg |
| Machine Dimensions (W x H x D) | 2,400 x 2,700 x 2,200mm |
| Air Requirements | 6 – 7 kg/cm² |
| Air Consumption | 150 L/min |
| Power Rating | 1.2 kW |
| Electrical | 220V, single phase, 60Hz |
