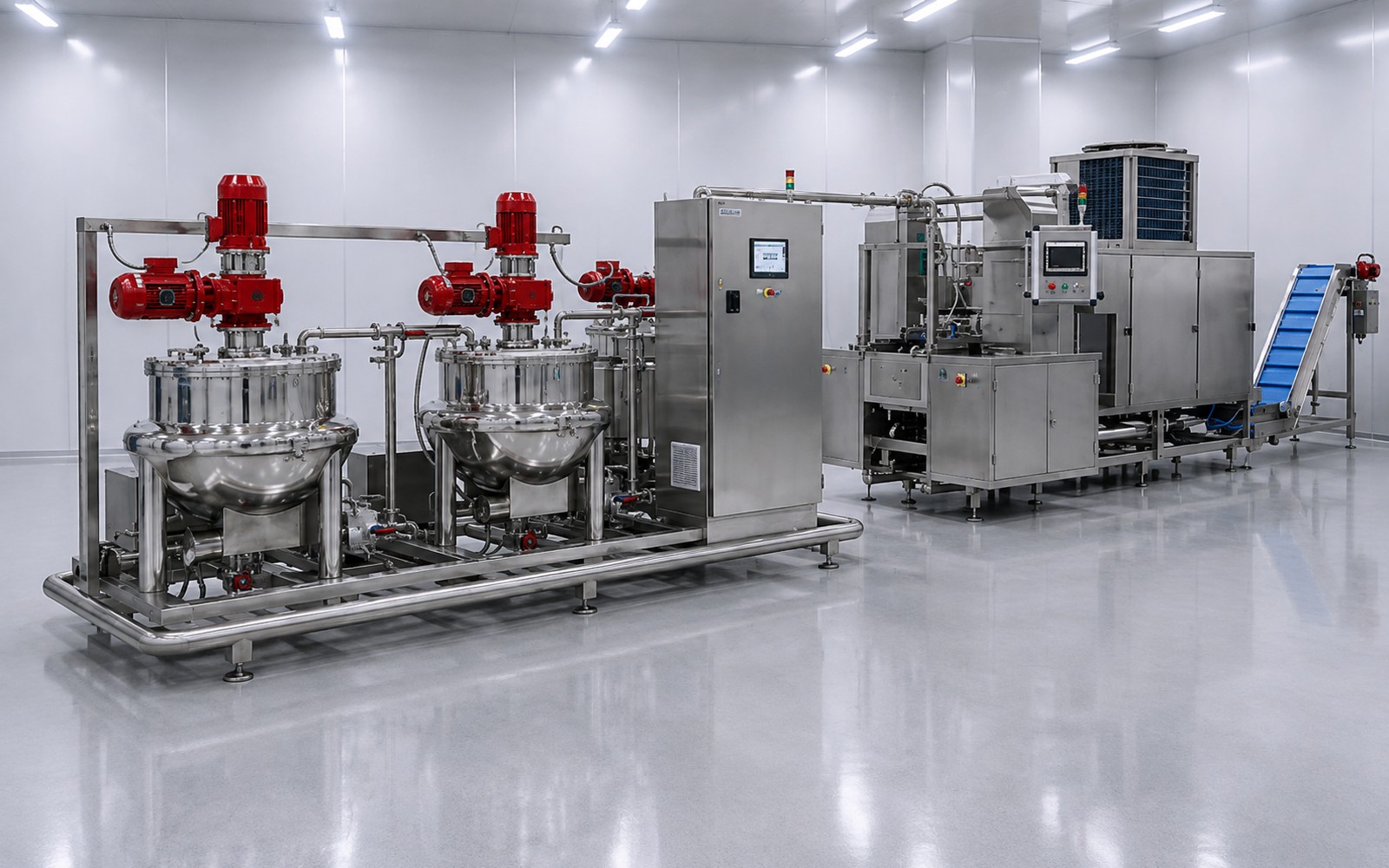

With only 26 feet of overall length, the M40 is a compact automatic gummy production system capable of depositing up to 15,000 gummies per hour. It's available in a single-kitchen "batch" format or a dual-kitchen "semi-continuous" format for more consistent output between batches.
The M40 packs a full gummy depositing line into just 26 feet of overall length, making it a strong fit for operations without room for a large-format line. Ultimate output depends on tank size, cleaning time, and depositor speed — rated at 10,000 deposits per hour, with up to 15,000 gummies per hour achievable depending on configuration and product.
The system includes a depositor kitchen on a tubular frame with leveling feet, a live belt drive motor and roller, a pneumatic chain tightener, compact stripper brush motors for de-molding, and a cooling tunnel with a de-molding process window. A 15" touchscreen controls the process. The cooling system needs a room held at 22–25°C and 45% humidity for consistent results.
Fits operations without room for a full-size gummy line.
Batch format, or semi-continuous with dual kitchens.
Manages the full depositing and cooling process.
Depositor kitchen sits on an adjustable, stable frame.
Drives the belt and roller system through the line.
Keeps chain tension consistent during operation.
Handles de-molding in a smaller footprint.
Monitor the de-molding process as it happens.
Also producing CBD or cannabinoid products? See our full CBD & Cannabinoid Manufacturing Equipment lineup.
Looking to configure a full production line? See our Gummy Bottling Lines guide.
| Model | M40 |
| Overall Length | 26 ft |
| Max Output | Up to 15,000 gummies/hr |
| Rated Production Capacity | 10,000 deposits/hr |
| Configuration | Single kitchen (batch) or dual kitchen (semi-continuous) |
| Cooling Room Temperature | 22–25°C |
| Cooling Room Humidity | 45% |
| Power | 220V, 1hp, 60Hz |
| Controls | 15" touchscreen |
| Component Dimensions | 590 x 400 x 450mm (L x W x H) |
