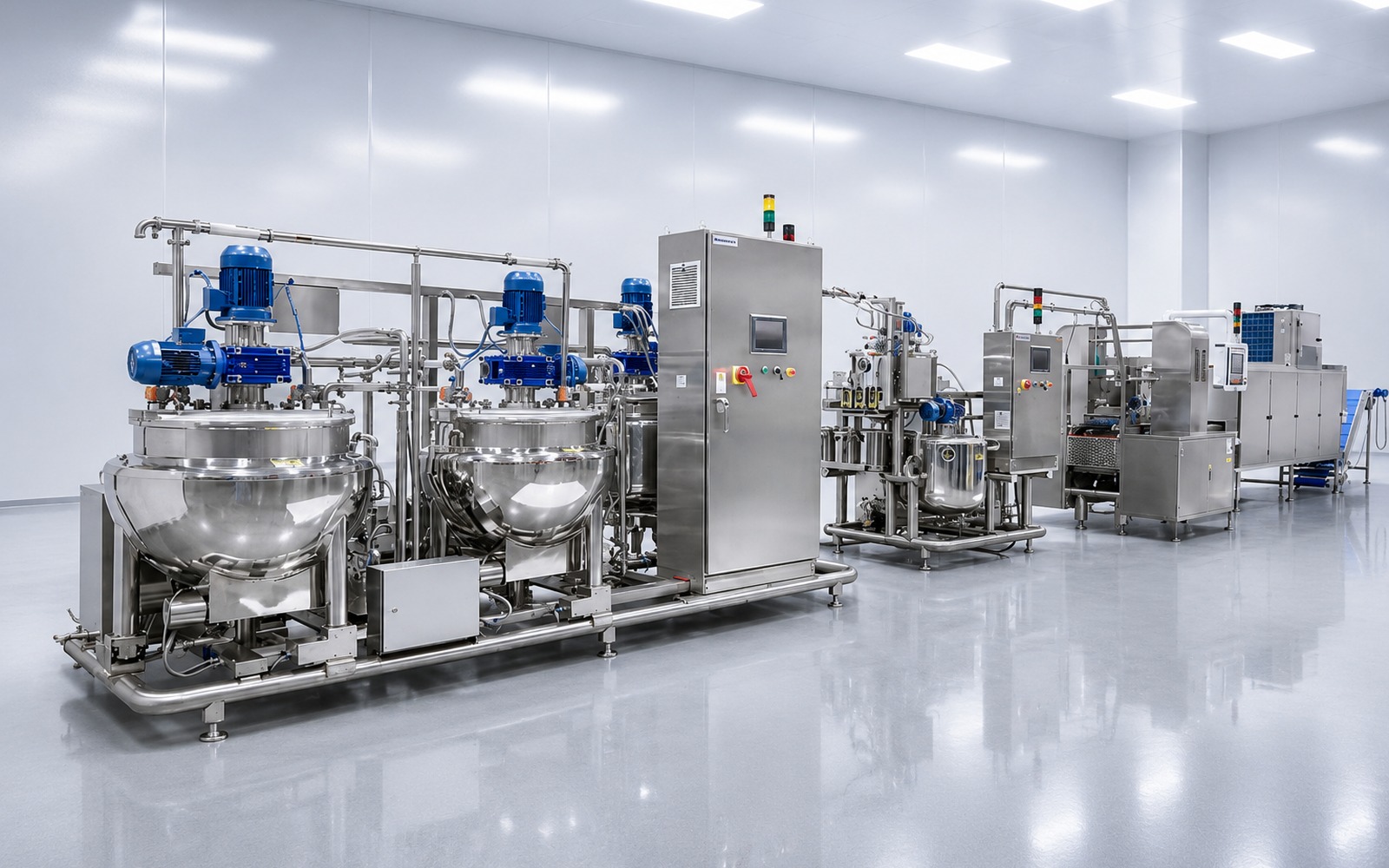

The GT300 pairs a full gummy production line with a Mini-CFA (continuous flow) depositor — making continuous depositing possible without a complex continuous cooker. Compared to a traditional continuous gummy line, it runs with roughly 30% fewer operators, and compared to a batch-based cooking system, it delivers around 50% higher gummy output. The system handles starch-free processing for either pectin or gelatin formulations.

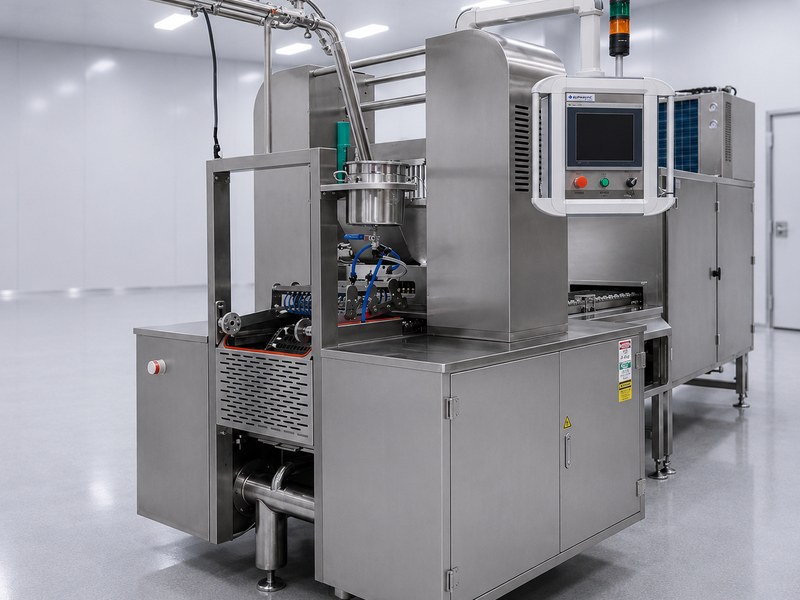

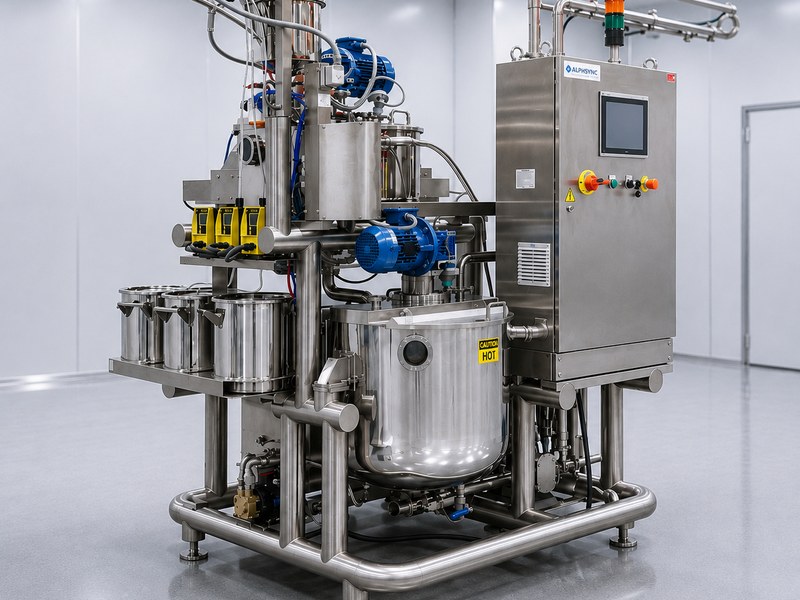

The GT300 is built around a Mini-CFA (continuous flow) depositor, which makes true continuous depositing possible without the complexity of a full continuous cooker. Color, flavor, acid, and actives — whether powder or liquid — are added automatically by weight into pre-weighed batches to within ±5g accuracy, while in-tank Brix meters replace manual measurement to keep cook consistency steady from batch to batch. Integrated load cells handle automatic syrup and water additions to pre-set recipe weights.
Rated production capacity runs 50–80 kg/hr. The system includes a color touch screen control panel, UL-listed electrical components and controls, an automatic oil coating system, and a quick-release gumdrop mold for fast changeovers. The cooling room should be held at 22–25°C (72–77°F) and 35–40% humidity.
Continuous depositing without a complex continuous cooker.
Versus a traditional continuous gummy line.
Versus a batch-based cooking system.
Color, flavor, acid & actives added by weight, ±5g accuracy.
Replaces manual measurement, improves cook consistency.
Integrated load cells hit recipe weights automatically.
Runs pectin or gelatin formulations.
Color touch screen, UL-listed electrical components.
Integrated coating stage built into the line.
Also producing CBD or cannabinoid products? See our full CBD & Cannabinoid Manufacturing Equipment lineup.
| Model | GT300 (Mini-CFA) |
| Production Capacity | 50–80 kg/hr |
| Processing | Starch-free; pectin or gelatin formulations |
| Batch Dosing Accuracy | ±5g (color, flavor, acid & actives) |
| Controls | Color touch screen, UL-listed components |
| Electric Power | 220V, 3-phase, 60Hz |
| Optional Chiller | 5hp |
| Compressed Air Consumption | 0.5 m³/min (~17.7 CFM) |
| Compressed Air Pressure | 0.4–0.6 MPa (58–87 psi) |
| Cooling Room Temperature | 22–25°C (72–77°F) |
| Cooling Room Humidity | 35–40% |
| Approx. Line Length (w/ Auto Coater) | 59'-10" |
| Approx. Gross Weight | ~5,000 kg (~11,000 lbs) |
