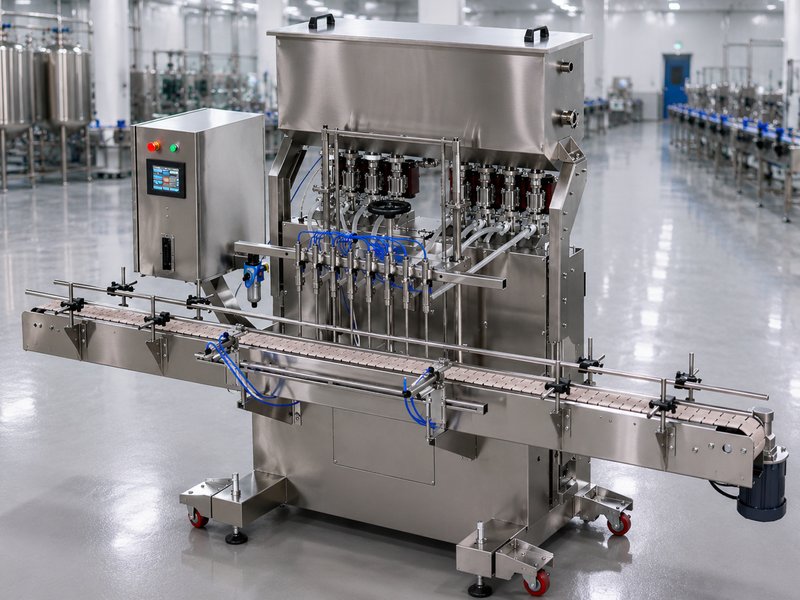

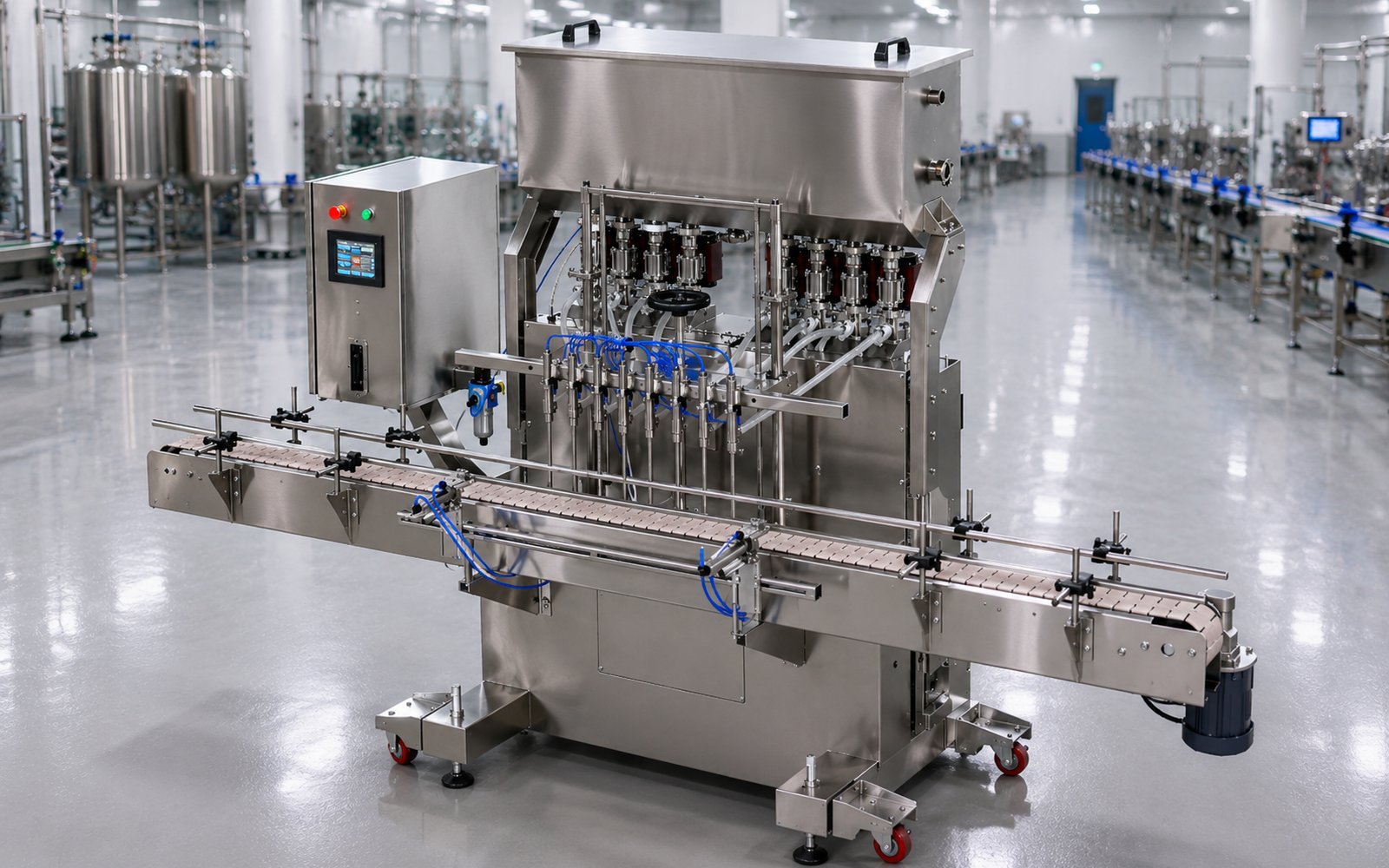

The TruPiston 8 SERVO replaces pneumatic or air-over-oil piston movement with high-precision, electrically-driven ball screws — faster and more precise, with fill and charge speeds adjustable at any point in the stroke. It's built to handle breakable particulates up to 3/4" in diameter without damage.
The TruPiston 8 SERVO uses high-precision, electrically-driven ball screw movement in place of pneumatic or air-over-oil systems — the result is faster, more precise piston movement, with the ability to change fill and charge speeds at any point in the stroke (for example, slowing down at the end of a cycle to prevent splashing).
FDA-approved metallic rotary valves are capable of handling breakable particulates up to 3/4" in diameter without damage, and the reservoir tank mounts directly above the rotary valves for direct product feed. Built on a heavy-duty 304 stainless steel welded frame with minimal air consumption — all contact parts are stainless steel, Teflon, Buna, and Viton.
Control is handled by an OMRON PLC with AC variable speed control, front-panel mounted bottle counter, and easily accessible Start/E-STOP controls. Piston sizes range from 7/8" ID (0.45–4.5 oz) up to 5-1/4" ID (16.7–167 oz), so the same platform covers a wide range of fill volumes.
Faster, more precise than pneumatic or air-over-oil.
Adjust speed at any point in the fill cycle.
Breakable particulates up to 3/4" diameter.
Metallic rotary valves rated for direct product contact.
Reservoir tank mounted directly above rotary valves.
Electric drive reduces compressed air demand.
Full control over all machine logic functions.
Stainless steel, Teflon, Buna, and Viton throughout.
Bottle counter, Start, and E-STOP within easy reach.
Looking to configure a full production line? See our Piston Filler Bottling Lines guide.
| Model | TruPiston 8 SERVO |
| Drive System | Electric, ball screw movement |
| Frame Construction | 304 Stainless Steel, welded |
| Valve Type | FDA-approved metallic rotary valves |
| Particulate Capacity | Up to 3/4" diameter (breakable particulates) |
| Piston Sizes Available | 7/8" ID (0.45–4.5 oz) to 5-1/4" ID (16.7–167 oz) |
| Control | OMRON PLC, AC variable speed control |
| Contact Parts | Stainless steel, Teflon, Buna, Viton |
| Power | 220V, 60Hz, 15A |
| Air Requirement | 5 CFM @ 80 PSI |
| Piston Capacity | 2-7/8" diameter, up to 50 oz per piston (as configured) |
| Holding Tank | Up to 60 gallons |
| Max Container Height | Up to 13" (depends on materials/application) |
| Conveyor | 120" x 4.5", variable speed control |
