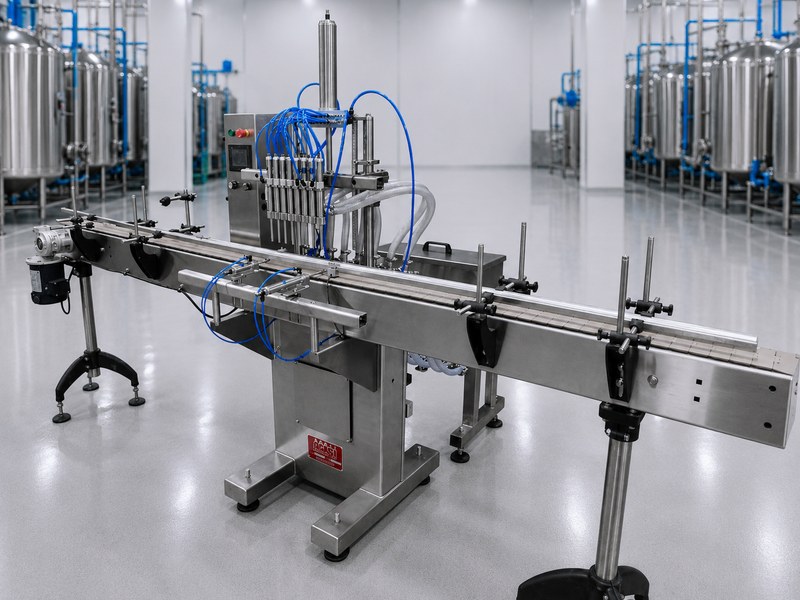

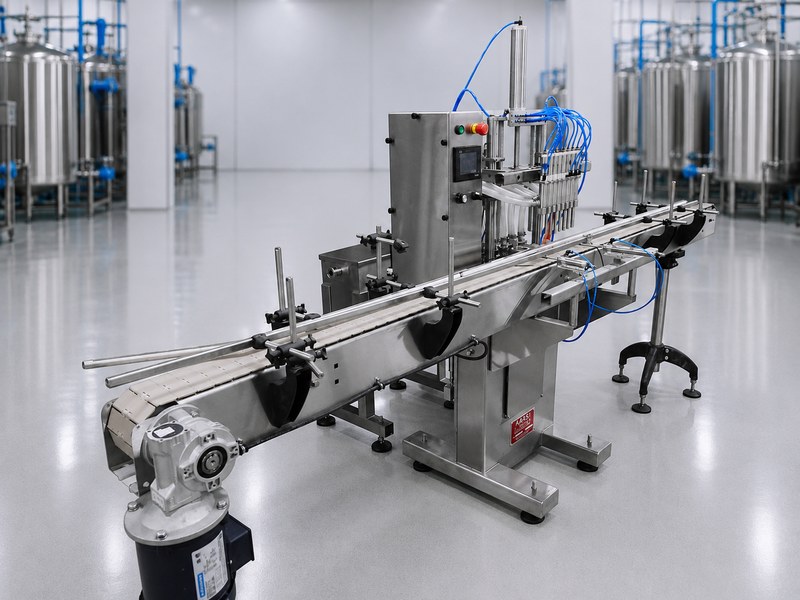

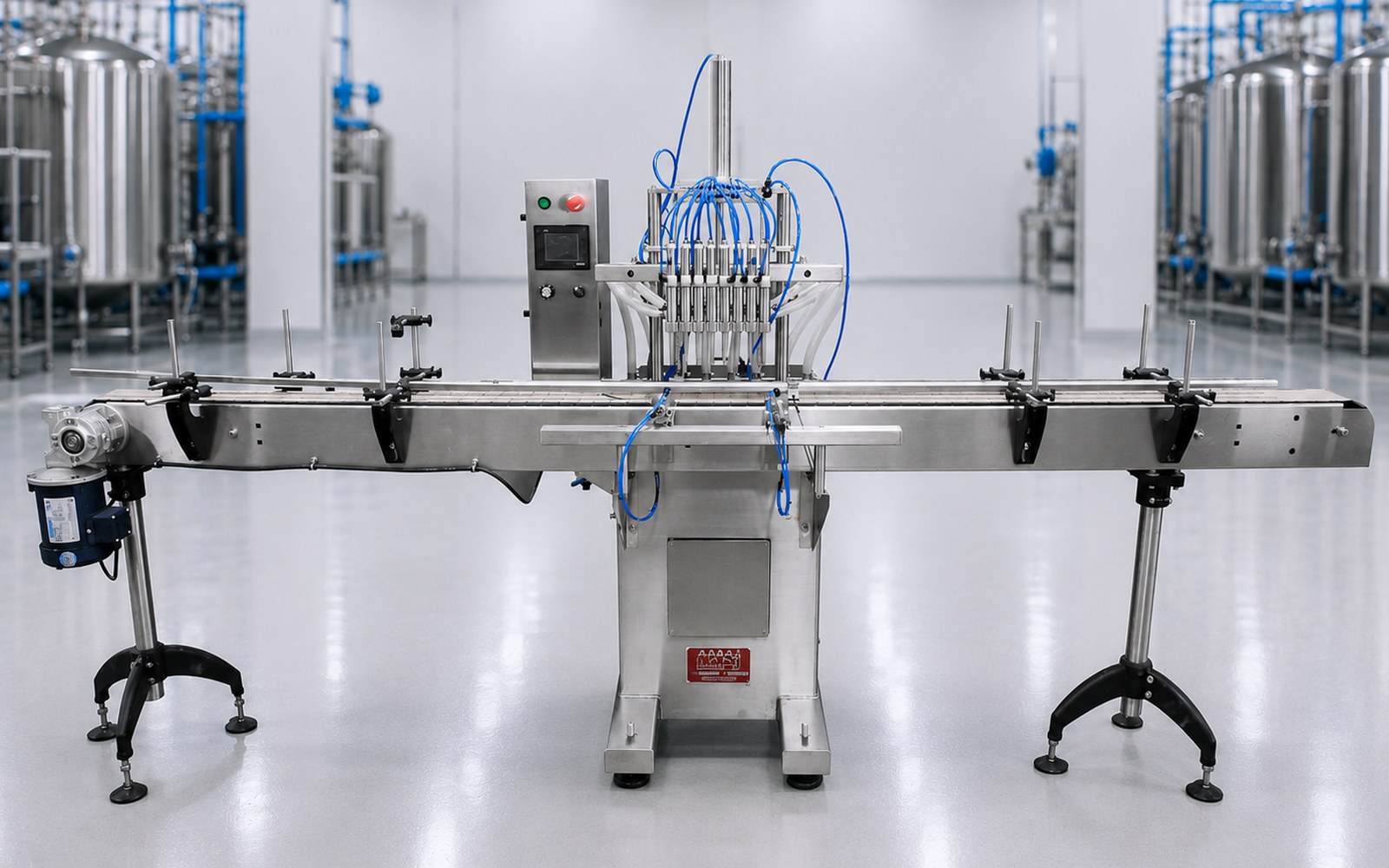

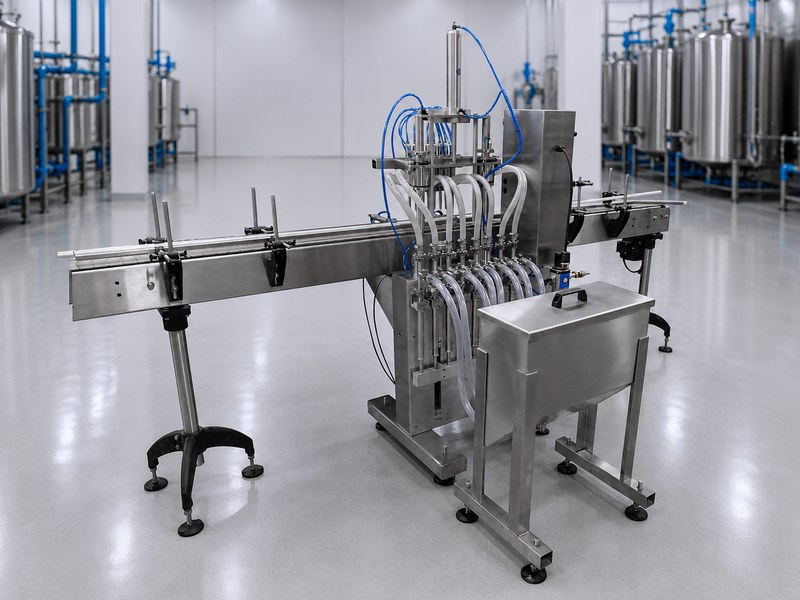

The Minipiston 8 is an automatic inline piston filler built for smaller fill volumes, using 8 miniature pistons to fill high-viscosity liquid products. Gating cylinders automatically control bottle handling as containers move through the machine.
The Minipiston 8 scales the piston-filling platform down to smaller fill volumes without giving up automation — 8 miniature pistons fill high-viscosity liquid products with gating cylinders that automatically control how bottles move through the machine.
It's the right fit when your fill volumes are too small for the standard PI3300 platform but you still need full automatic operation rather than a semi-automatic machine. Also available in a 4-piston configuration (MiniPiston 4) for lower-volume runs.
Automated filling for smaller fill volumes.
Gating cylinders control bottle handling automatically.
Built for thick products that need piston-style filling.
Scaled-down platform for smaller volume runs.
No operator-timed steps — runs inline automatically.
MiniPiston 4 available for lower-volume production.
| Model | Minipiston 8 (MP-8) |
| Piston Count | 8 (4-piston MiniPiston 4 also available) |
| Operation | Fully automatic |
| Bottle Handling | Automatic gating cylinders |
| Product Range | High viscosity liquids |
| Power | 220V, 60Hz, 5A |
| Air Requirement | 5 CFM @ 80 PSI |
