Filling Machines

Automatic Pressure
Overflow Filler

Model GI 3300 — Low Viscosity. Expandable to 20 Nozzles.

The GI 3300 is a fully automatic inline pressure overflow filler for low viscosity liquid products, built on a heavy-duty 304 stainless steel C-frame with a 20-gallon stainless steel overflow tank. It ships standard as a 6-head machine and expands up to 20 nozzles to increase speed as your volume grows.

🔢6 – 20
Nozzles (Expandable)
🛢️20 Gallon
Overflow Tank
🖥️Omron
PLC Control
🔩304 Stainless
Steel Frame
Request a Quote → Download Brochure ⬇
⚡In stock or quick ship — custom builds also available|Need it faster? Ask about current availability or expedited builds.

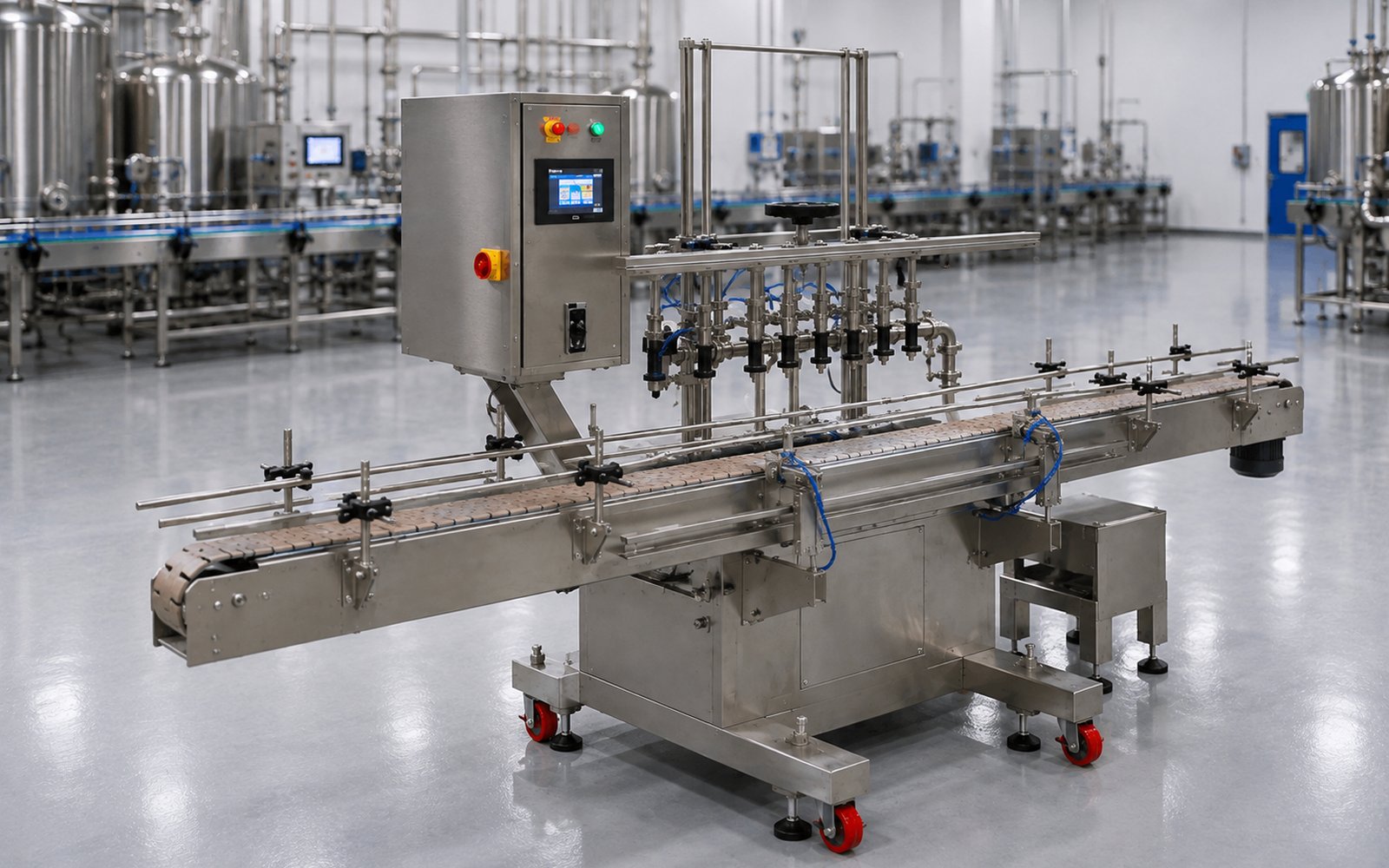

GI 3300 front view

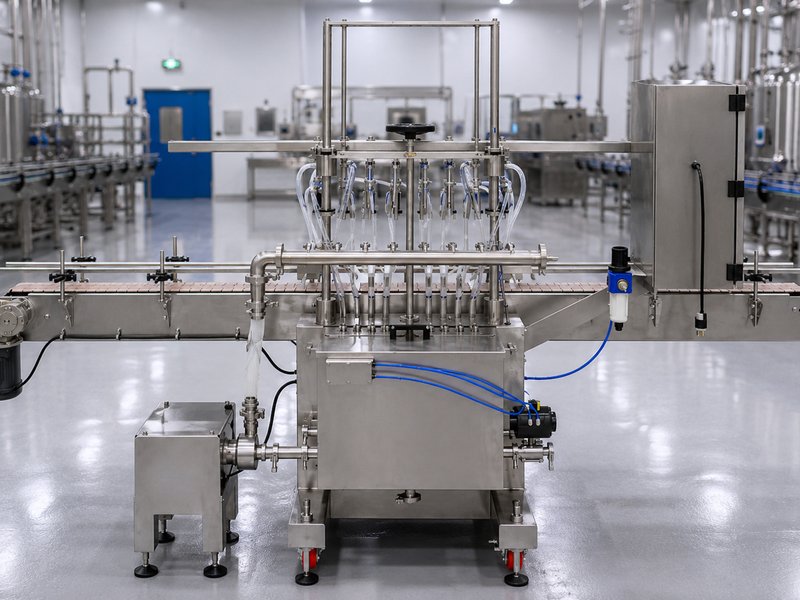

GI 3300 with feed pump and tank

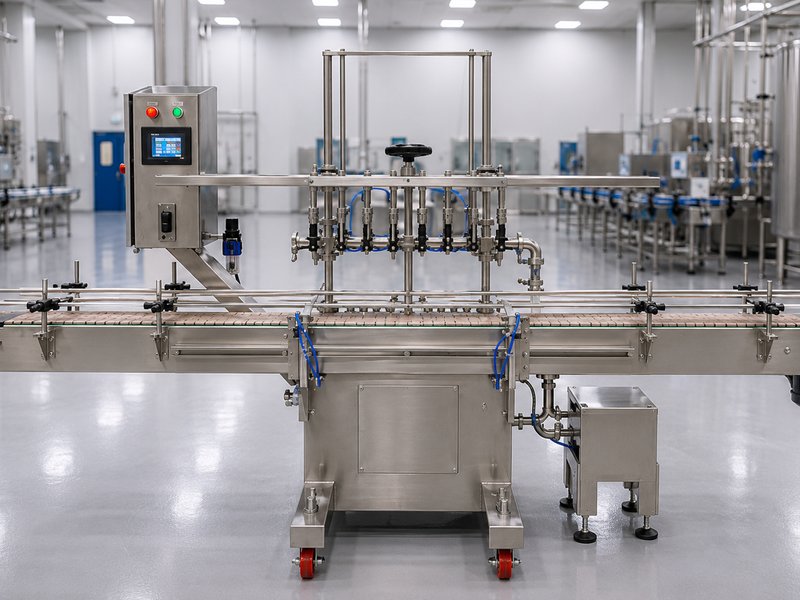

GI 3300 rear view with control panel

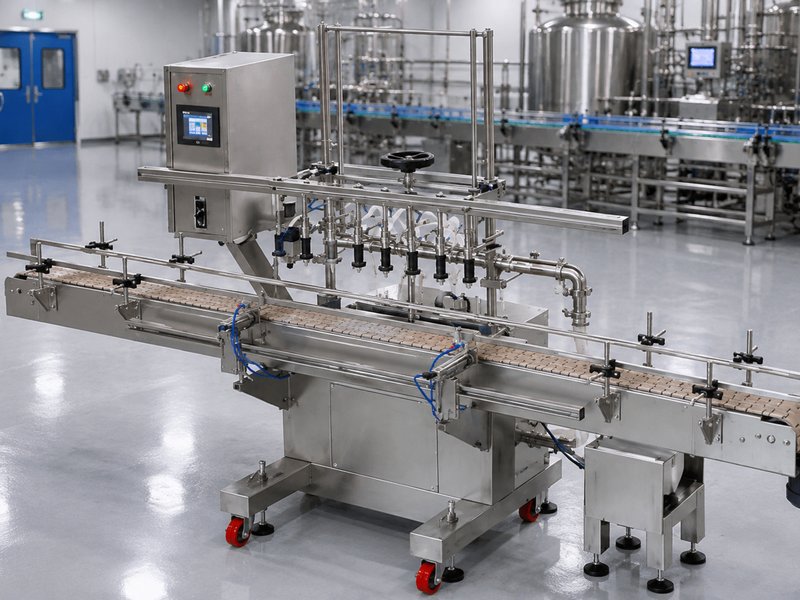

GI 3300 angled view

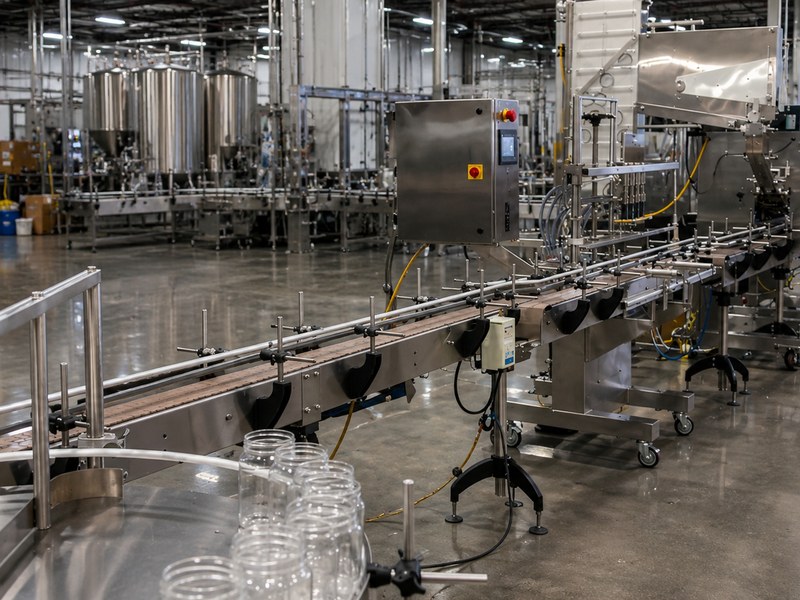

GI 3300 installed on production floor, conveyor and jar infeed view
🏷️
GI 3300Model
🔢
6 – 20Nozzles (Expandable)
📏
1" – 16"Container Height
⚡
220V, 60Hz, 10APower
💨
5 CFM @ 80 PSIAir Requirement

Overview

The GI 3300 fills low-viscosity liquids using the overflow method — a fast, accurate, and cost-effective fill technology built around a 96 GPM, 1 Hp, 3-phase, 316 stainless steel centrifugal pump. A 316L stainless steel sanitary check valve mounts directly on the pump, and hardened stainless steel calibrated shafts with linear bearings keep the nozzle rack moving smoothly and reliably over time.

Omron PLC handles all machine logic, with frequency-controlled pump speed (including acceleration and deceleration), front-panel bottle fill time adjustment, conveyor speed control, a mounted bottle counter, and front-panel Start/Emergency STOP controls. Nozzle quantity is adjustable through a front-panel code, and fiber-optic sensors handle container gating with no-bottle-no-fill logic built in.

Container height adjusts from 1" to 16", nozzle stroke from 0" to 10", and the machine works with plastic or glass containers with no change parts needed. As shipped standard, pricing covers a 6-head machine with a PLC-controlled pneumatic drip tray and a 10 ft conveyor (4.5" wide acetal chain) with speed control.

Features & Benefits

✓Expandable to 20 Nozzles

Scale throughput as your production volume grows.

✓96 GPM Centrifugal Pump

316 stainless steel, 1 Hp, 3-phase.

✓Omron PLC Control

All logic functions, with adaptation available for special needs.

✓Frequency-Controlled Pump Speed

Adjustable acceleration and deceleration.

✓No-Bottle-No-Fill

Fiber-optic sensors prevent wasted product.

✓Adjustable Nozzle Quantity

Front-panel code changes active nozzle count.

✓20-Gallon Overflow Tank

Stainless steel with stainless steel cover.

✓No Change Parts Needed

Works with plastic or glass containers as-is.

✓10 ft Conveyor Included

4.5" wide acetal chain, speed control on panel.

Ideal For

  • 🧴 Personal Care
  • 🍽️ Food & Beverage
  • 🌿 Nutraceutical
  • 💄 Cosmetics
  • ⚗️ Low-Viscosity Products

Technical Specifications

ModelGI 3300
Frame Construction304 Stainless Steel, welded C-frame
Overflow Tank20 Gallon, stainless steel with SS cover
Pump96 GPM, 1 Hp, 3-phase, 316 stainless steel centrifugal
Nozzles6 standard, expandable to 20
Container Height Range1" – 16" (adjustable)
Nozzle Stroke0" – 10" (adjustable)
Conveyor10 ft, 4.5" wide acetal chain, speed control
Power220V, 60Hz, 10A
Air Requirement5 CFM @ 80 PSI
Container MaterialsPlastic or glass — no change parts needed

Machine Drawing

📐
Add engineering drawing

Full Manufacturer Specifications

Construction Features

  • 304 Stainless steel heavy duty stainless steel welded C frame.
  • 20 gallon stainless steel overflow tank.
  • Stainless steel cover for overflow tank.
  • 20 hose 304 stainless steel feeding manifold.
  • All contact parts are stainless steel, sanitary, Teflon, viton, and hoses per your requirements.
  • Special seals or hoses by order.
  • Calibrated guide for fast height changeovers.
  • Filling machine mounted on 4 heavy duty casters.
  • Leveling of machine by 1 inch 304 stainless steel leveling screws.

Control Panel Features

  • Omron PLC for all machine logic functions, special modifications on programs available for special adaptations.
  • Frequency control drive for pump speed, acceleration, and deceleration.
  • Front panel bottle filling time adjustment through Omron Timer.
  • Front panel conveyor speed control for machine sold with conveyor.
  • Front panel mounted bottle counter.
  • Front panel Start and Emergency Stop for easy access.
  • Front panel nozzle code for changing nozzle quantities.
  • Fiber optic sensors, Omron standard, for container gating.
  • Expandable to 20 nozzles to increase speed.
  • No bottle, no fill — PLC controlled.

Main Component Features

  • 96 gallon per minute, 1 Hp, 3-phase, 316 stainless steel centrifugal pump.
  • Hardened stainless steel calibrated shafts with linear bearings for nozzle rack movement smoothness and durability.
  • 10 inch stroke air cylinder with magnetic sensors for nozzle up and down movement.
  • 316L stainless steel sanitary check valve mounted on pump.
  • Hand wheel and shaft mounted stoppers for height and stroke adjustment.

Standard Features

  • Nozzle spacing fully adjustable through top screw.
  • Container height adjustment from 1 to 16 inches high.
  • Nozzle stroke adjustments from 0 to 10 inches.
  • Entry and exit bottle gating cylinders adjustable sideways, up and down, and inside and outside.
  • Works with plastic or glass containers.
  • No change of parts needed for various types of containers.
  • Air filter-regulator and safety lockout valve included.
  • Spacing and additional bottle control obtained by flow controls mounted on air gating cylinders.

Electric & Pneumatic Requirements

  • 220 Volts, 60Hz, 10 Amps.
  • 5 CFM @ 80 PSI.
