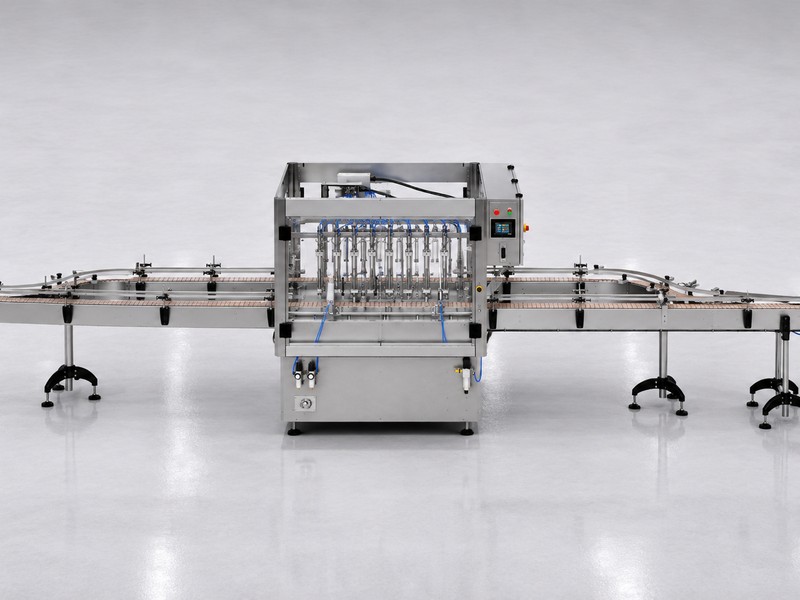

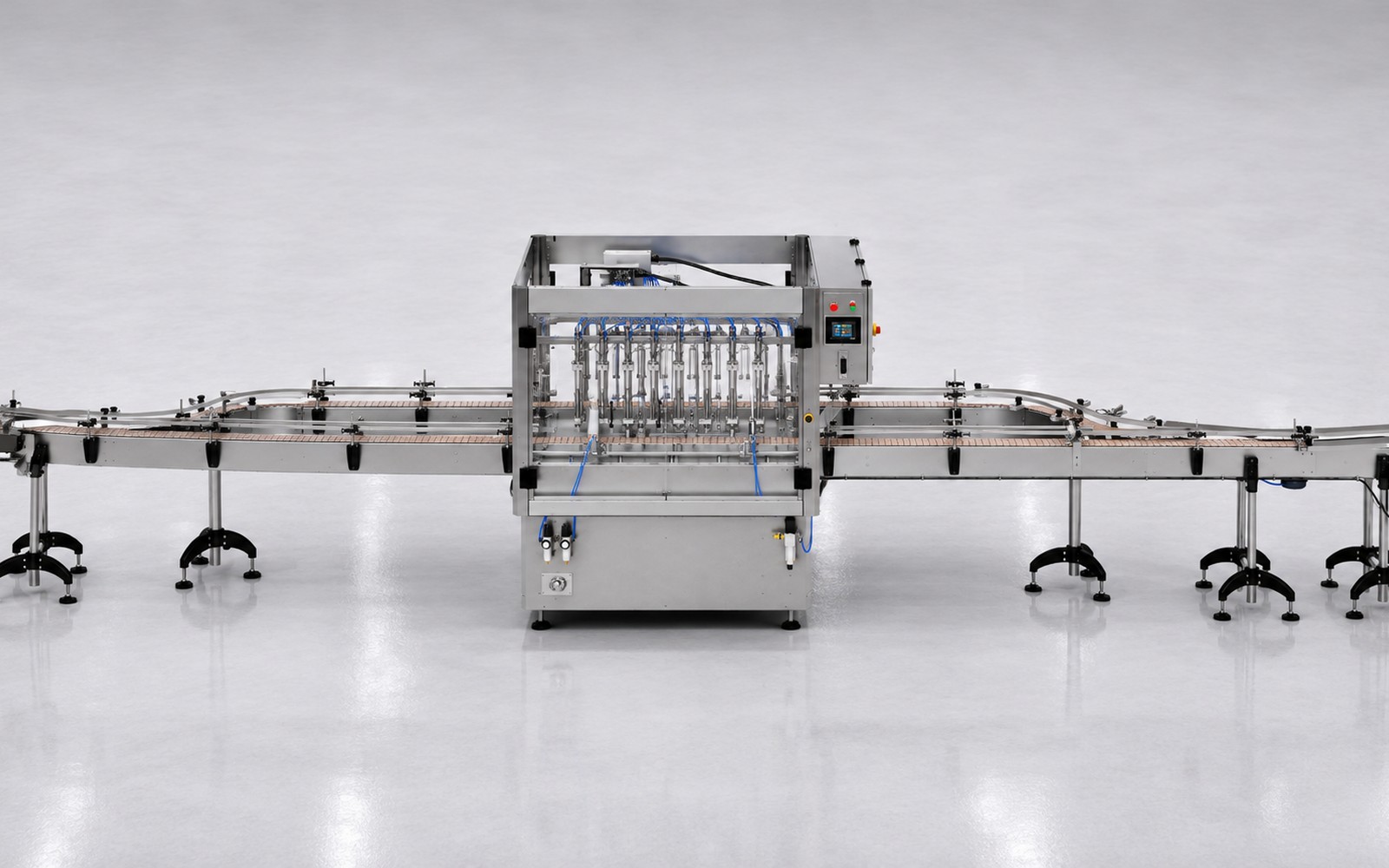

The FMF-12000-DL pairs two independent flow meter filling lanes on a single 304 stainless steel C-frame, each running up to 12 ultra-compact flowmeter transmitters. Fill volume is set electronically rather than mechanically, so changing over between container sizes is a touchscreen adjustment, not a parts swap — and running two lanes side by side roughly doubles throughput versus a single-lane flow meter filler.
The FMF-12000-DL takes the same flow-meter filling principle as our single-lane FMF-12000 and runs it across two independent lanes on one frame — each lane measures fill volume by flow rather than mechanical displacement, giving accurate, repeatable fills that hold steady across every nozzle without individual adjustment.

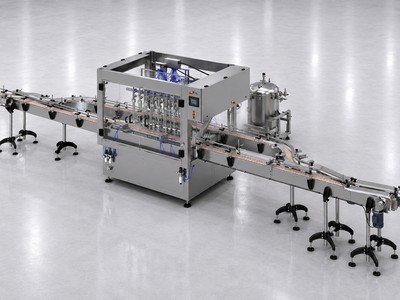

Built on a 304 stainless steel heavy-duty welded C-frame, each lane runs up to 12 ultra-compact flowmeter transmitters feeding from a 316ss or 304ss special tank with its own level sensor, precision regulator, and fast-acting pressure-relief valve for air and inert gas. OMRON PLC handles all filler logic for both lanes, with controls duplicated on front and back panels — conveyor speed, bottle counter, start/e-stop, and nozzle configuration all accessible from either side of the machine.
Because volume is set electronically rather than mechanically, changeover between container sizes is a touchscreen adjustment rather than a parts swap, and the calibrated guide allows fast height changeovers as well.

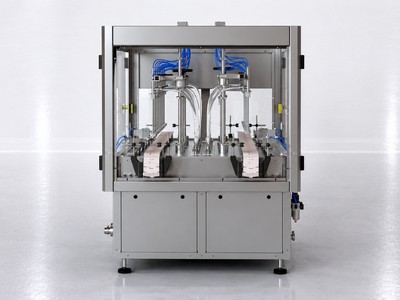

Run two filling lanes side by side on a single frame for roughly double the throughput of a single-lane flow meter filler.
Precise, repeatable volumetric measurement per nozzle, on each lane.
All filler logic on OMRON PLC, controlling both lanes together.
Conveyor speed, bottle count, start/stop, and nozzle configuration accessible from either side of the machine.
Adjust volume electronically — no pistons to swap.
Dedicated relief valve for air and inert gas lines.
Works with plastic or glass containers as-is.
Entry/exit gating cylinders adjust sideways, up/down, and inside/outside.
Fast height changeovers between container sizes.
| Model | FMF-12000-DL |
| Configuration | 2 independent filling lanes, single frame |
| Frame Construction | 304 Stainless Steel, heavy duty welded C-frame |
| Flowmeters | Up to 12 per lane, ultra-compact transmitter |
| Tank Material | 316ss or 304ss (special tank) |
| Control | OMRON PLC, front & back panel controls |
| Additional Components | Level sensor, precision regulator, fast-acting pressure-relief valve |
| Container Materials | Plastic or glass — no change parts needed |
| Height Changeover | Calibrated guide for fast changeovers |
| Power | 220V, 60Hz, 15A |
| Air Requirement | 20 CFM @ 80 PSI |
