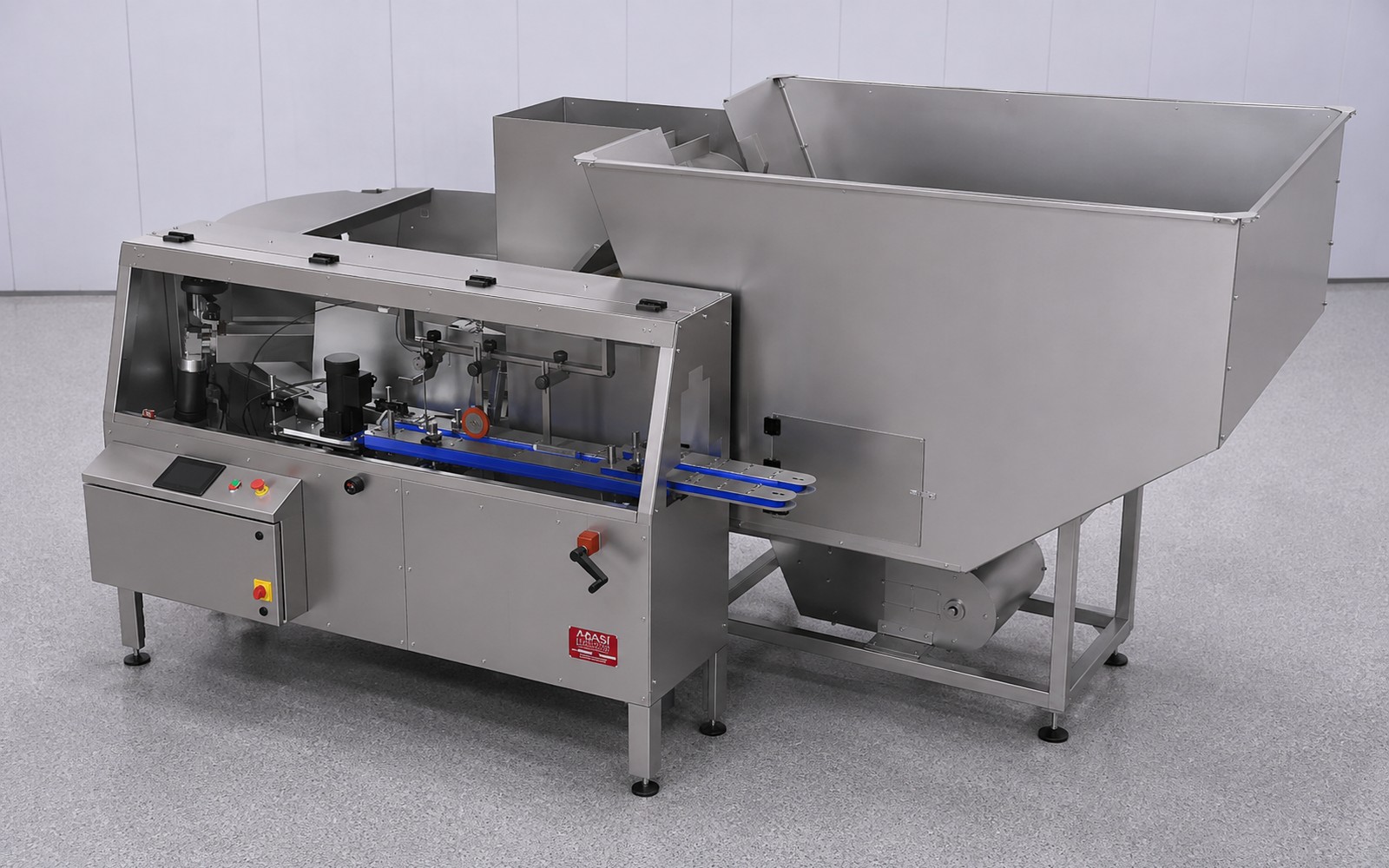

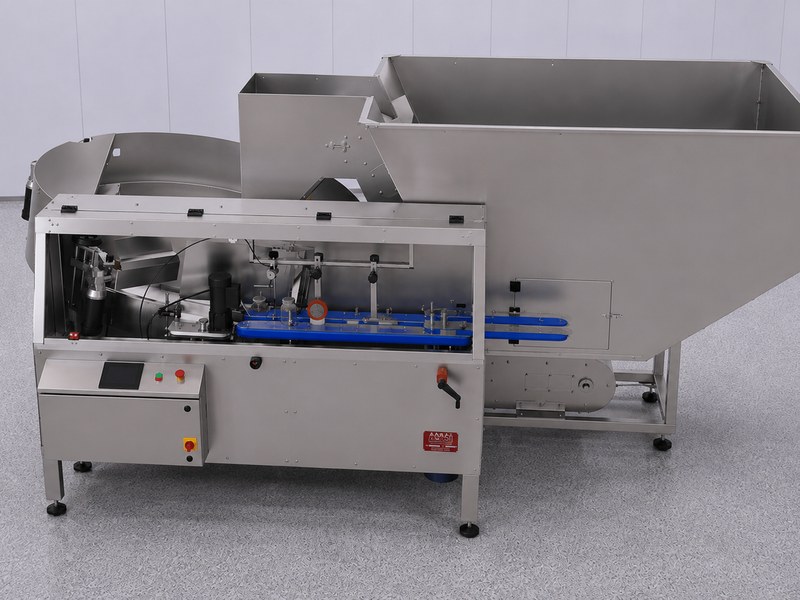

The TruSort-72 feeds and orients plastic and metal containers automatically, from ounces up to gallons. A 72" diameter pre-feeder bowl (one inner disc included) gives our largest standard unscrambling capacity, built for high-volume runs or larger containers. Bottle turning is handled by a pneumatic actuator to hold production speed, with a rotating bottle reject and speed control built in.
An inclined conveyor lifts containers from the hopper into a rotating pre-feeder bowl, built at an angle to minimize bottle damage. The bowl organizes containers so they end up neck-leading or neck-trailing only, then a hook mechanism lets neck-trailing bottles pass while turning neck-leading ones — so every container ends up lying down with the neck following, ready to move down the line to your filler, capper, and labeler.
A 72" diameter pre-feeder bowl (one inner disc included) gives our largest standard capacity, for high-volume runs or larger containers. Built on a heavy-duty 2" x 2" x 0.187" square tube frame with adjustable positioning to minimize change-parts requirements across different container types. Multiple hopper sizes are available, including a 100 cu. ft. hopper option for sustained high-volume feeding.
Our largest bowl for high-volume runs or larger containers.
Minimizes change-parts requirements across containers.
Sized to your application's throughput needs.
Actuator-driven turning holds production speed.
Speed-controlled reject built into the system.
Reduces bottle damage during feeding.
3/4 Hp motor, no belt/spring transmission to maintain.
Single-point intake/delivery belt adjustment.
Low electric and pneumatic draw for the duty cycle.
| Model | TruSort-72 |
| Frame Construction | 2" x 2" x 0.187" square tube, heavy duty |
| Pre-Feeder Bowl | 72" diameter, one inner disc included |
| Container Range | Ounces to gallons, plastic and metal (non-fragile) |
| Main Drive Motor | 3/4 Hp, single gearbox |
| Bottle Turning | Pneumatic actuator |
| Power | 220V, 60Hz, 10A |
| Air Requirement | 5 CFM @ 80 PSI |
| Guarantee | 18 months on all parts under normal use (excludes belts) |
