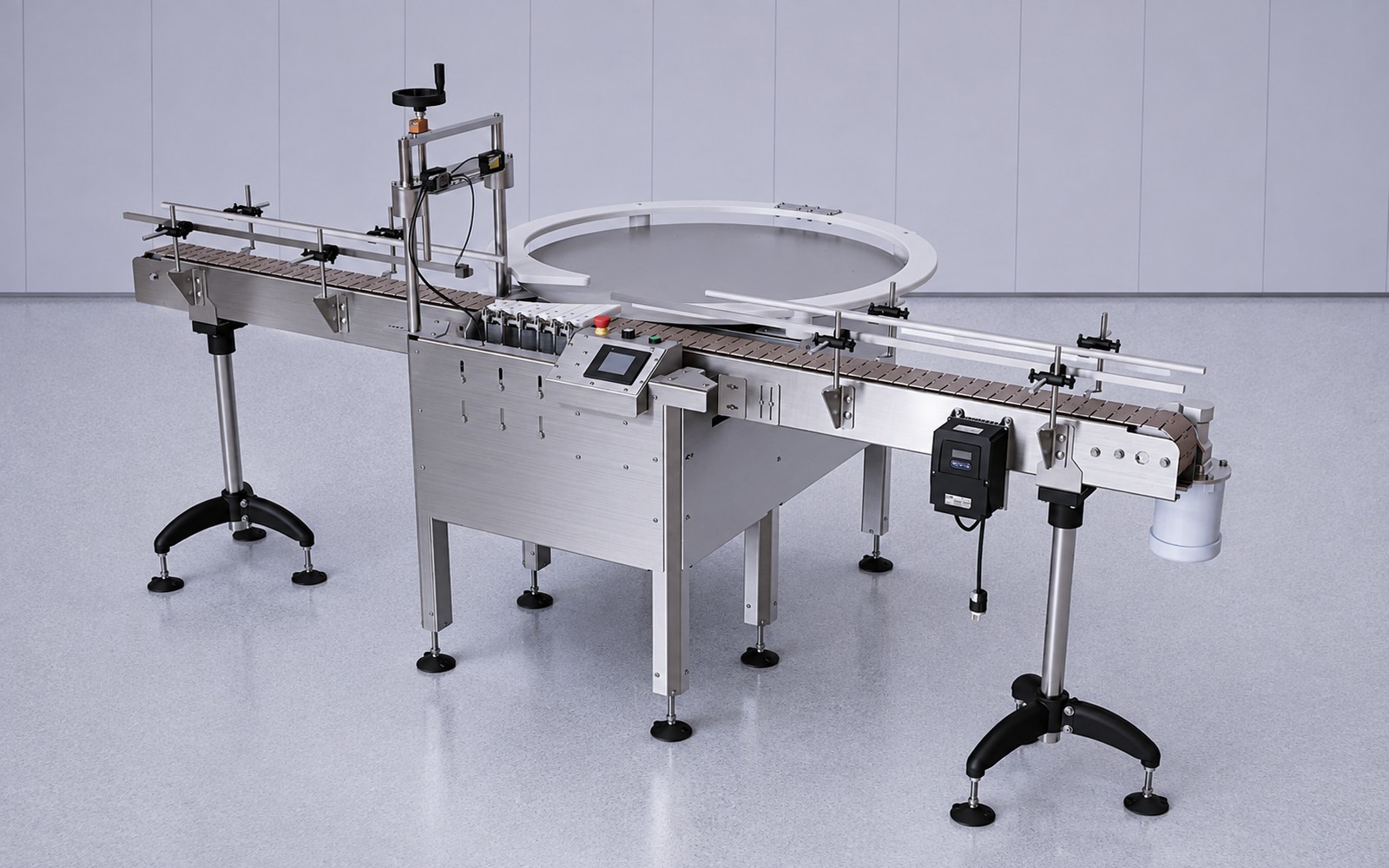

The Model 1900-002 automatically rejects glass and PET containers that fail quality checks, using a multi-segment rejector sized to your container range. Pneumatically controlled pusher elements move rejected bottles off the line and onto an accumulating rotary table, with Omron PLC handling all machine logic.
The Model 1900-002 has a corresponding multi-segment rejector sized to your specific container range, covering the most common container sizes, shapes, and materials. All machine logic runs on an Omron PLC with a 5" HMI handling machine functions and delays, plus frequency-controlled conveyor speed, acceleration, and deceleration.
Rejection is handled by pneumatically controlled pusher elements that move failed containers off the main line and onto an accumulating rotary table, keeping the rest of the line running without interruption. Container height adjusts from 7.5" to 18" to cover a wide range of bottle sizes, and front-panel Start and Emergency STOP controls are within easy reach.
All logic functions and delays on one interface.
Reliable, fast rejection of failed containers.
Sized to match your specific container range.
Conveyor speed, acceleration, and deceleration on HMI.
Failed bottles routed off-line automatically.
Handles the most common container materials.
7.5"–18" range for fast height changeovers.
Start and Emergency STOP within easy reach.
| Model | 1900-002 |
| Frame Construction | 304 Stainless Steel, heavy duty |
| Control | Omron PLC, 5" HMI |
| Container Height Range | 7.5" – 18" (calibrated guide) |
| Container Materials | Glass and PET |
| Rejection Method | Pneumatically controlled pusher elements |
| Reject Destination | Accumulating rotary table |
| Conveyor Speed Control | Frequency drive, with acceleration/deceleration on HMI |
| Electric Requirement | 220V, 60Hz, 5A |
| Air Requirement | 5 CFM @ 80 PSI |

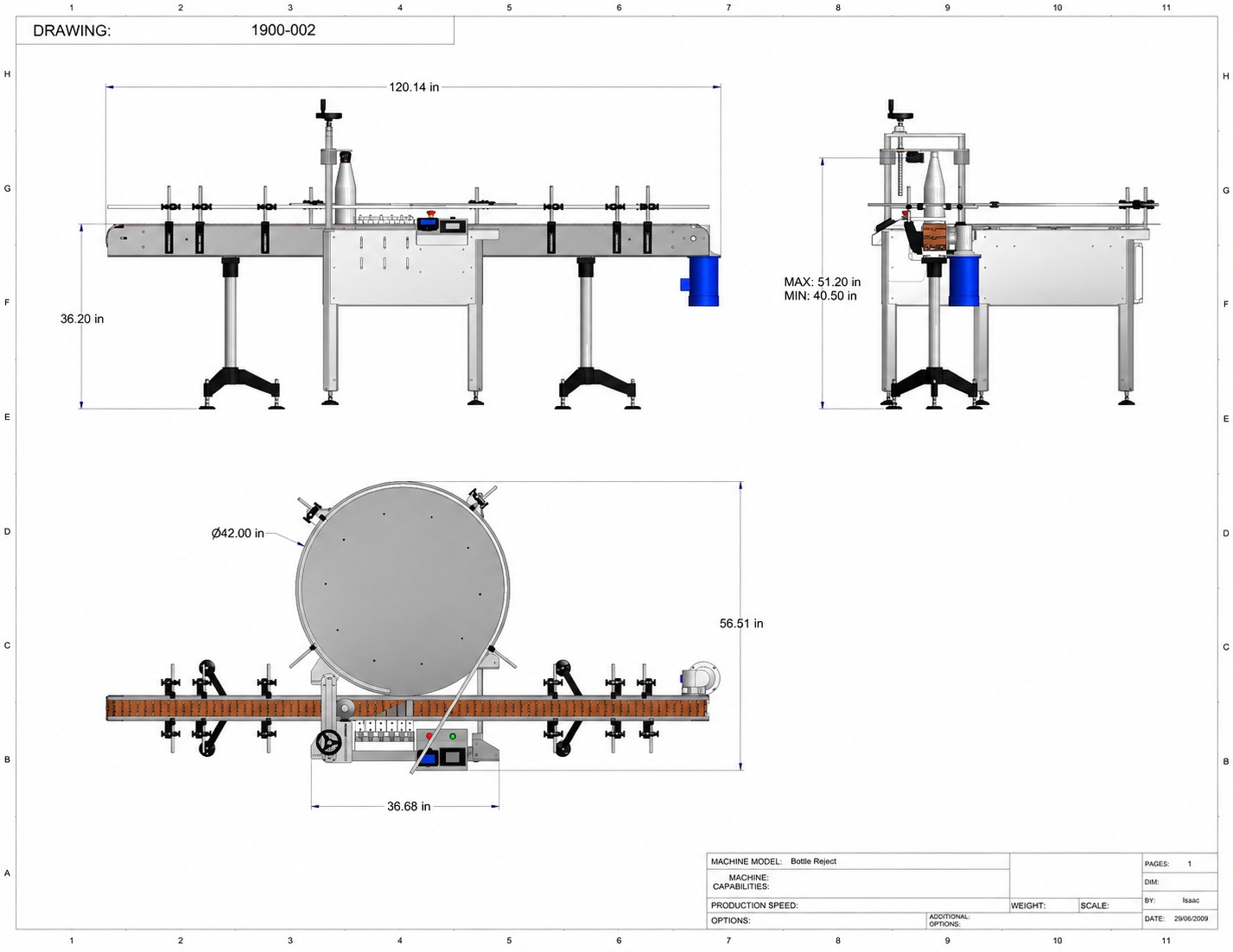

| Overall Length | 120.14" |
| Overall Height | 36.20" (conveyor); 40.50"–51.20" (bottle sensor) |
| Rotary Table Diameter | 42.00" |
| Rotary Table Height | 56.51" |
