All-stainless-steel conveyors with tool-less guide rail adjustment, built standard for every machine we sell or fully custom to your line layout. We stock 4.5" and 7.5" straight conveyors in 6, 10, 13, 16, and 20 ft lengths, and curved (L, U, S-shape) or raised sanitary conveyors are available in virtually any configuration.
Every conveyor is manufactured in 304 stainless steel with tool-less guide rail adjustment as standard. We stock 4.5" and 7.5" straight conveyors in 6, 10, 13, 16, and 20 ft lengths. Custom widths and configurations are available on request, including L-shape, U-shape, S-shape, or any other curve configuration at virtually any length.
Standard features include an acetal running chain, a 1/2 HP AC motor, variable speed drive (installed in the filling machine's electric panel, or as a standalone control mounted on the conveyor for independent units), tripod bottom supports with height adjustability, and a set of tool-less guide rails. Raised and sanitary conveyor options are also available for washdown environments.
Fast changeovers without tools.

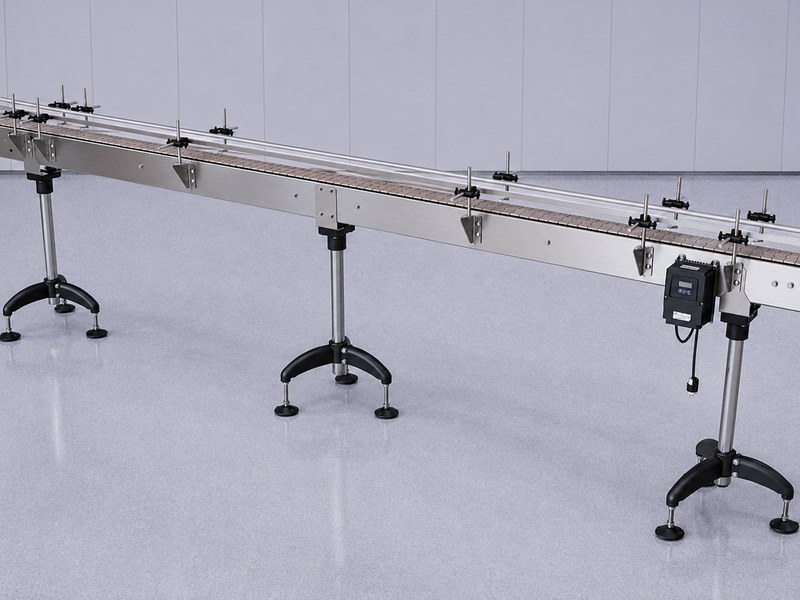

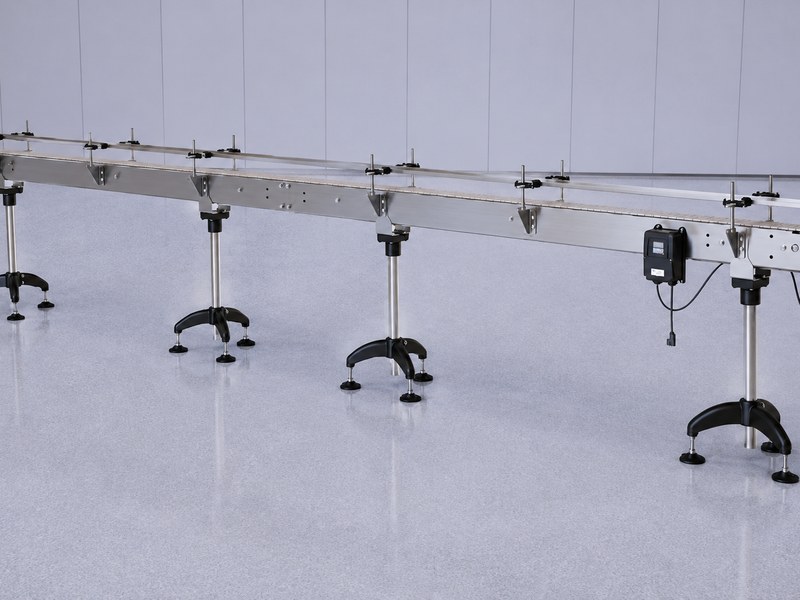

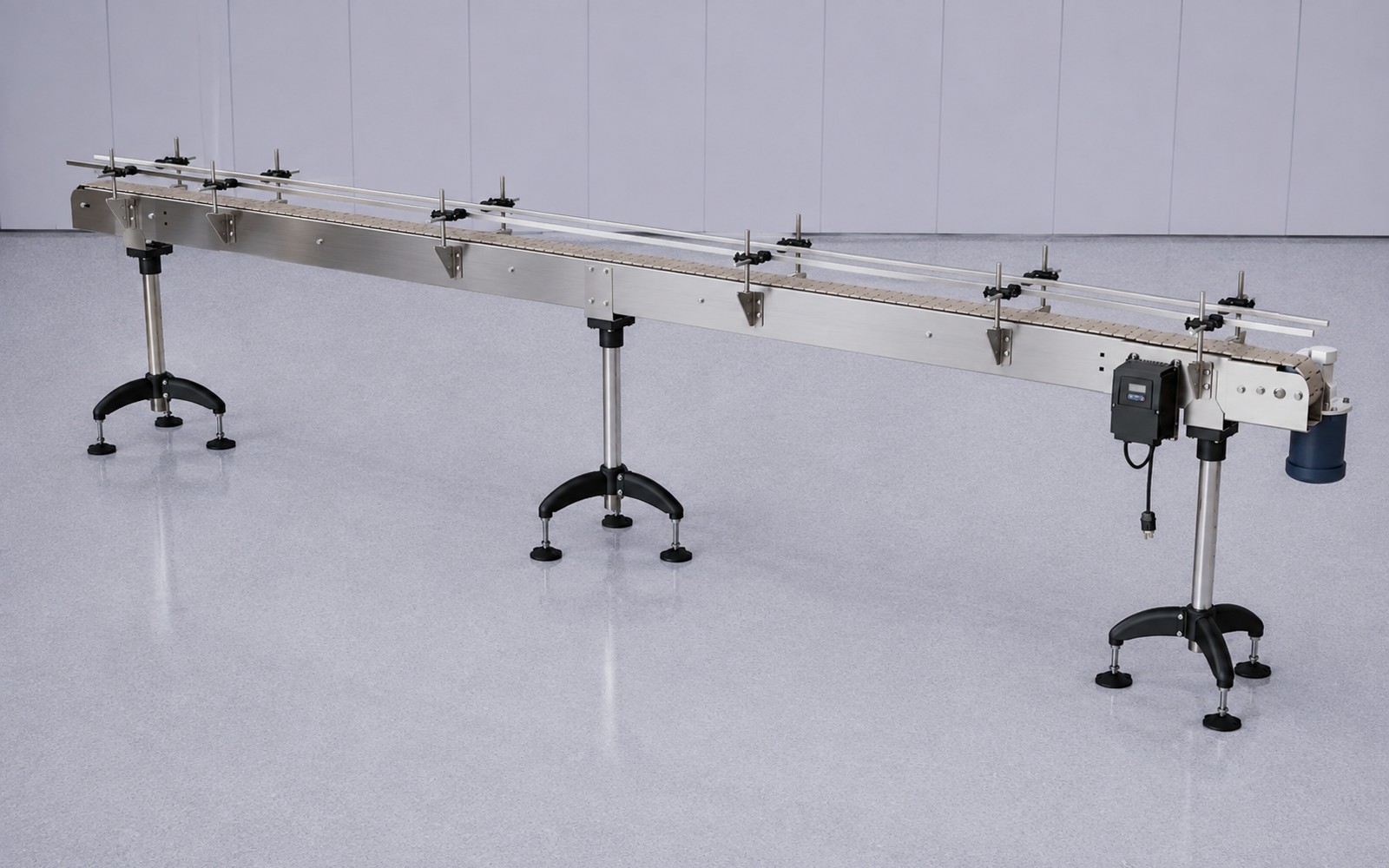

6, 10, 13, 16, and 20 ft in 4.5" width.
L, U, S-shape, or any other configuration.
Panel-integrated or standalone conveyor control.
Tripod bottom supports for easy leveling.
Raised and sanitary conveyors for washdown lines.
Sealed enclosure protects motor and gearbox.
Low-friction adjustable side guides.
Standard on our machines, or fully custom for yours.
| Construction | 304 stainless steel throughout |
| Standard Widths | 4.5" and 7.5" (stock), other widths on request |
| Stock Straight Lengths | 6, 10, 13, 16, 20 ft |
| Curved Configurations | L-shape, U-shape, S-shape, custom |
| Chain | Acetal running chain |
| Motor | 1/2 HP AC motor |
| Guide Rails | Tool-less adjustment |
| Leg Supports | Tripod, height adjustable (HCL plastic threaded rods) |
| Speed Control | Variable speed, panel-integrated or standalone |
| Electric Requirement | 110V, 60Hz, 10A (n/a if wired into filler panel) |
